Parts Location [07/2015 - ]: Illustration

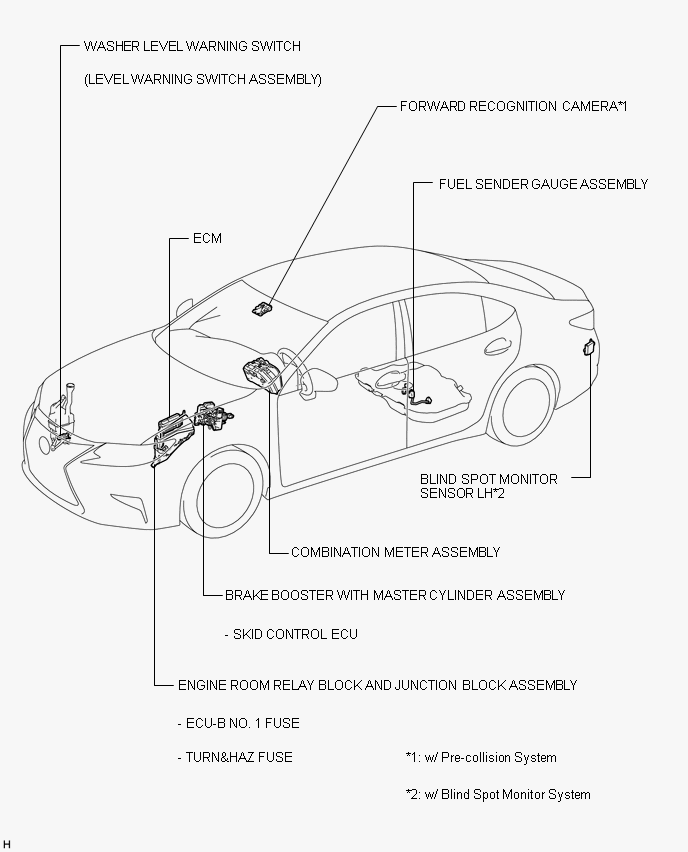

Fig 1: Meter / Guage System Components Location (1 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

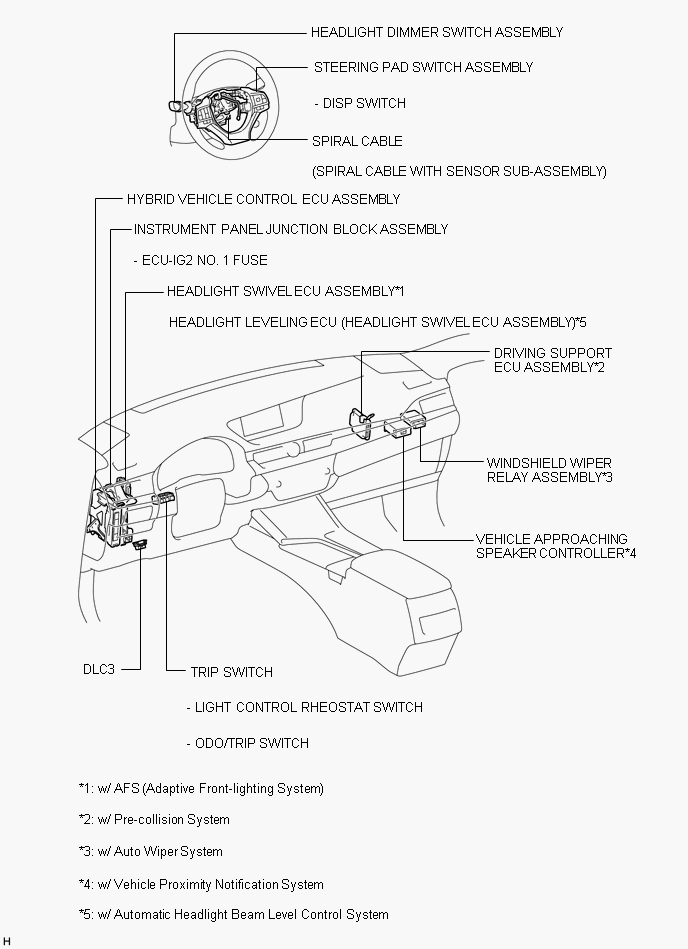

Fig 1: Meter / Guage System Components Location (2 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

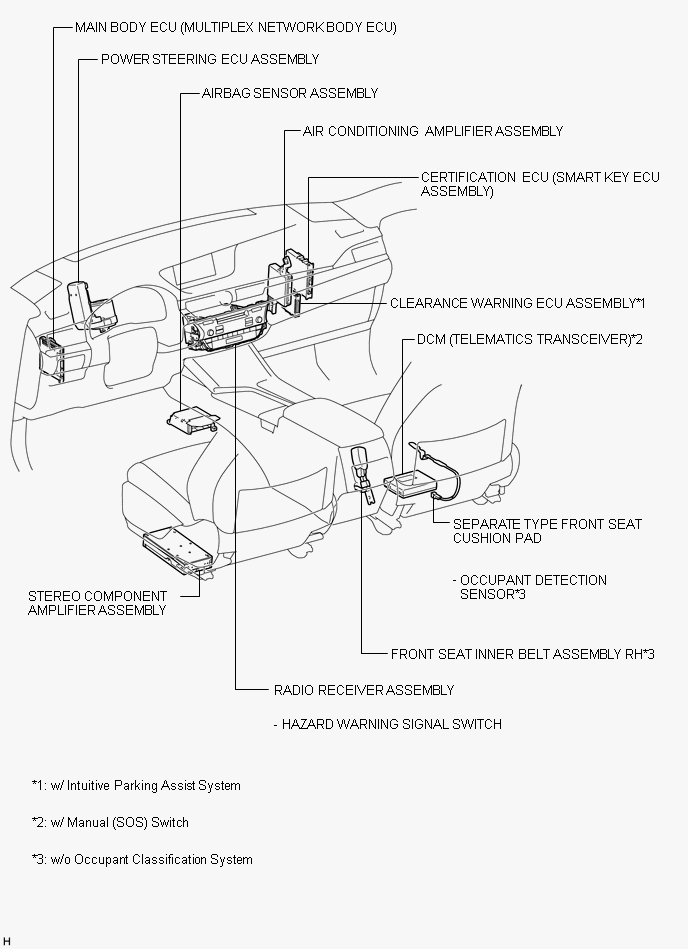

Fig 1: Meter / Guage System Components Location (3 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

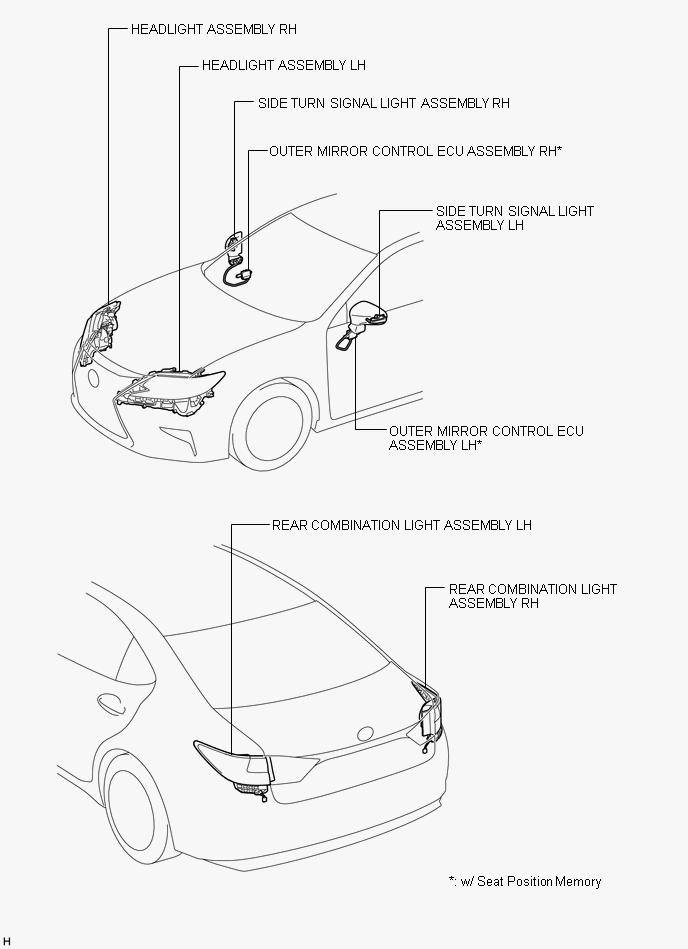

Fig 1: Meter / Guage System Components Location (4 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Meter/Gauge System Components Location (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
