Operating Light Control Rheostat does not Change Light Brightness [07/2015 - ]: Wiring Diagram

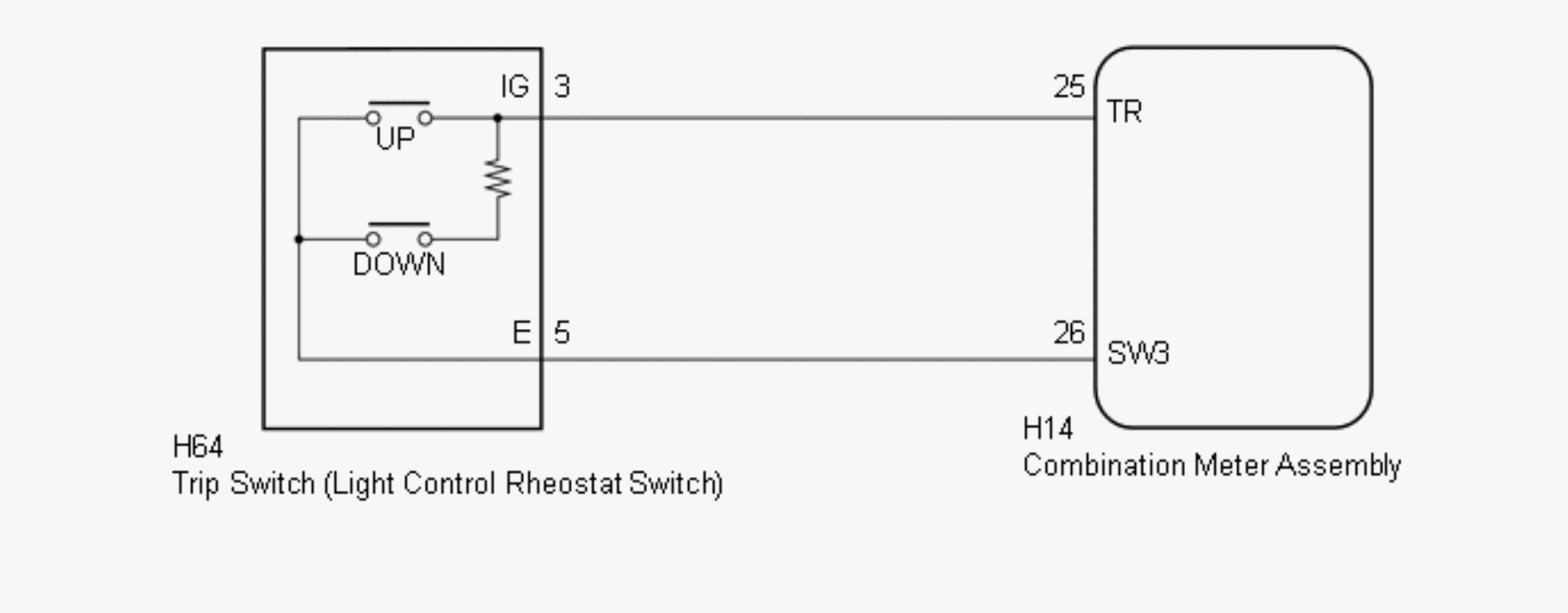

Fig 1: H64 Trip Switch Wiring Diagram

GTY645276

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
