Speed Signal Circuit [07/2015 - ]: Wiring Diagram

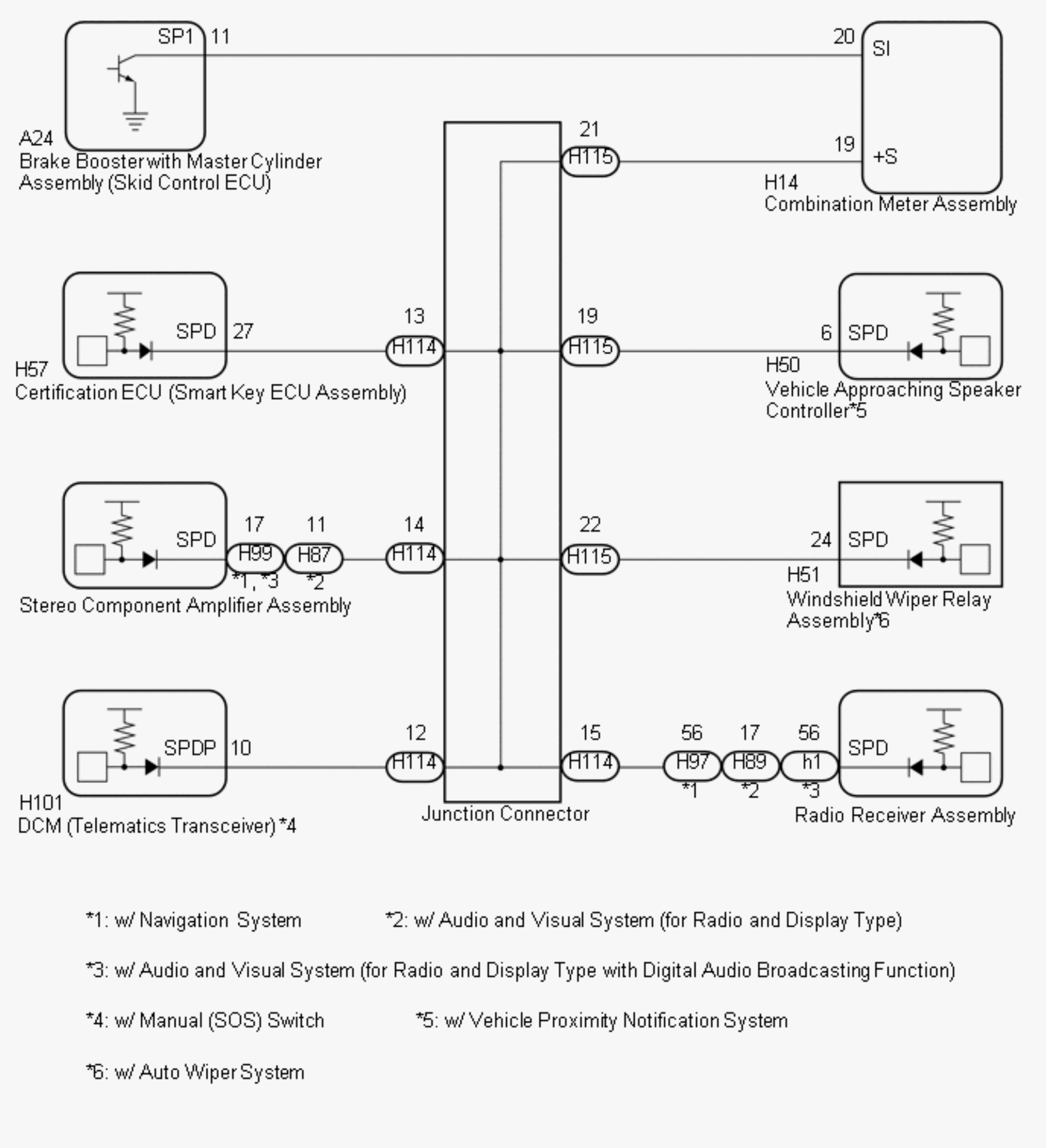

Fig 1: Speed Signal Wiring Diagram

GTY647008

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
