Speedometer Malfunction [08/2014 - ]: Wiring Diagram

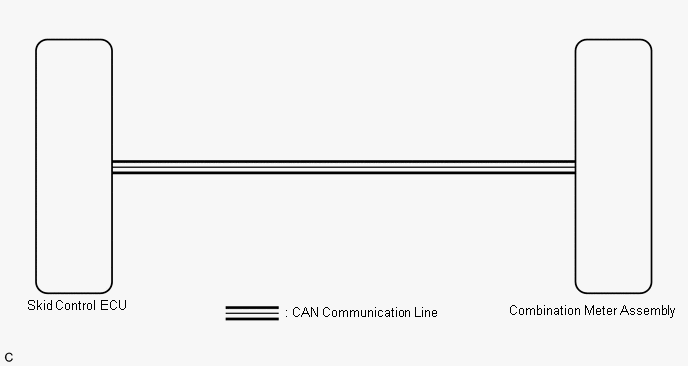

Fig 1: Speedometer Malfunction [08/2014 - ] Wiring Diagram

GTY525829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
