Removal [09/2015 - 08/2016]: Procedure

REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY
- for 2WD: Refer to REMOVAL [09/2015 - 08/2016]
- for AWD: Refer to REMOVAL [09/2015 - 08/2016]

REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH

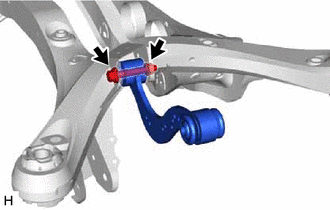

Remove the bolt, nut and rear upper control arm assembly LH from the rear suspension member sub-assembly.

NOTE:

Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH
HINT:

Perform the same procedure as for the LH side.
