Removal [09/2015 - 12/2017]: Procedure

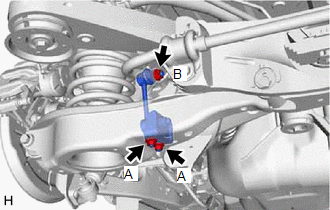

1. Remove the 2 nuts (A) and separate the rear stabilizer link assembly LH from the rear No. 2 suspension arm assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the nut (B) and the rear stabilizer link assembly LH from the rear stabilizer bar.

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

3. Secure the rear lower stabilizer bracket in a vise using aluminum plates.
   NOTE:

   Do not overtighten the vise.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Remove the nut and rear stabilizer link assembly LH from the rear lower stabilizer bracket.

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

HINT:

Perform the same procedure as for the LH side.

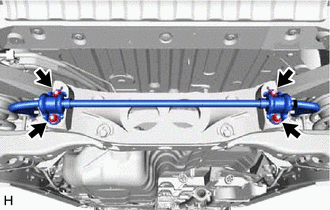

1. Remove the 4 nuts, rear stabilizer bar, 2 rear No. 1 stabilizer bar brackets and 2 rear stabilizer bushings from the rear suspension member sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 rear No. 1 stabilizer bar brackets from the 2 rear stabilizer bushings.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 rear stabilizer bushings from the rear stabilizer bar.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
