Components [09/2015 - ]

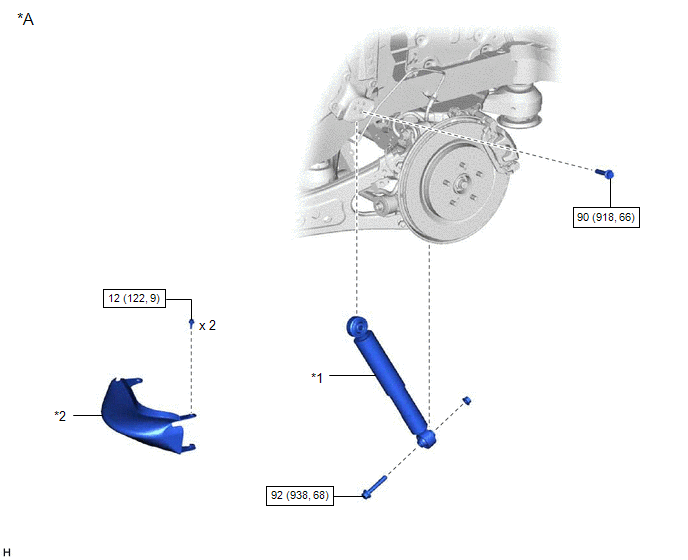

Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o AVS	-	-
*1	REAR SHOCK ABSORBER ASSEMBLY	*2	REAR SUSPENSION ARM COVER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

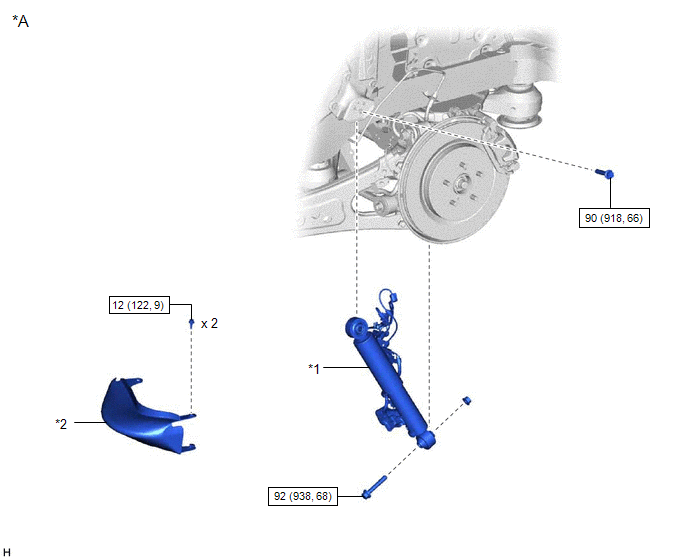

Fig 2: Rear Shock Absorber Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ AVS	-	-
*1	REAR SHOCK ABSORBER ASSEMBLY	*2	REAR SUSPENSION ARM COVER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

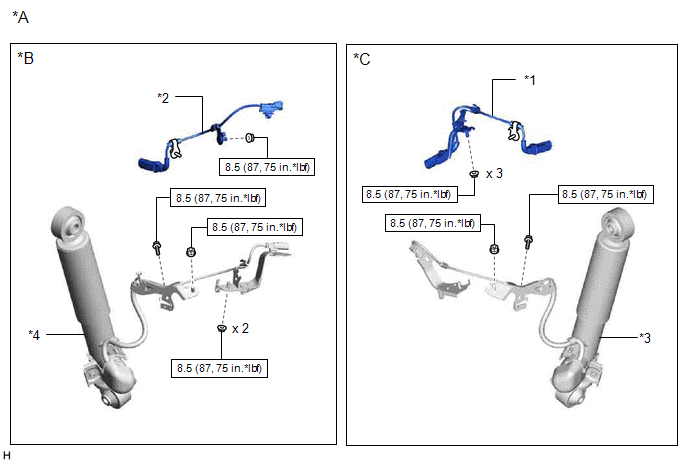

Fig 3: Rear Shock Absorber Replacement Components With Torque Specification (3 Of 3)

Callout	Description	Callout	Description
*A	w/ AVS	*B	for RH Side
*C	for LH Side	-	-
*1	REAR SKID CONTROL SENSOR WIRE LH	*2	REAR SKID CONTROL SENSOR WIRE RH
*3	REAR SHOCK ABSORBER ASSEMBLY LH	*4	REAR SHOCK ABSORBER ASSEMBLY RH
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
