Installation [09/2015 - 08/2016]: Procedure

1. Remove the bolt, nut and rear lower suspension member stopper.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

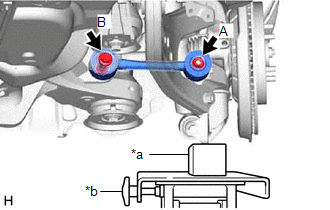

2. Using a transmission jack and a wooden block, support the rear axle carrier sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wooden Block
   *b	Transmission Jack

3. Temporarily install the rear No. 1 suspension arm assembly to the rear axle carrier sub-assembly with the spacer and nut (A).
4. Temporarily install the rear No. 1 suspension arm assembly to the rear suspension member sub-assembly with the bolt (B) and nut.
   NOTE:

   • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
   • Insert the bolt with the threaded end facing the rear of the vehicle.

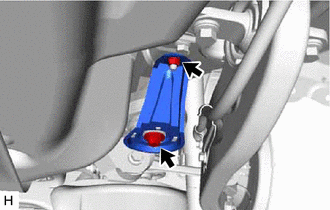

5. Install the rear lower suspension member stopper with the bolt and nut.

   Bolt

   Torque: 158 N*m (1611 kgf*cm, 117 ft.*lbf)

   Nut

   Torque: 32 N*m (326 kgf*cm, 24 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Temporarily install the rear No. 2 suspension arm assembly to the rear suspension member sub-assembly with the rear No. 2 suspension camber adjust cam, rear suspension toe adjust cam sub-assembly and the nut.
   NOTE:

   • Insert the rear suspension toe adjust cam sub-assembly from the rear of the vehicle.
   • When tightening the nut, keep the rear suspension toe adjust cam sub-assembly from rotating.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  2

See step  3

See step  4

See step  5

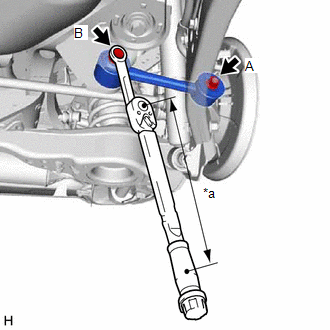

1. Using a ball joint lock nut wrench fully tighten the rear No. 1 suspension arm assembly with the bolt (B).

   Specified tightening torque

   Torque: 150 N*m (1530 kgf*cm, 111 ft.*lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

     Refer to PRECAUTION [09/2015 - 12/2017]

   • When using a ball joint lock nut wrench (fulcrum length of 150 mm (5.91 in.)) + torque wrench (fulcrum length of 400 mm (1.31 ft.)):

     109 N*m (1111 kgf*cm, 80 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Torque Wrench Fulcrum Length

2. Fully tighten the rear No. 1 suspension arm assembly with the nut (A).

   Torque: 145 N*m (1479 kgf*cm, 107 ft.*lbf)

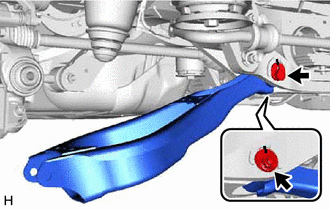

1. Install the rear suspension arm cover to the rear No. 2 suspension arm assembly with the 2 bolts.

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

Refer to INSTALLATION [09/2015 - 12/2017]

Refer to PROCEDURE - Step 1

1. Lower the vehicle to the ground.
2. Bounce the vehicle up and down at the corners to stabilize the rear suspension.

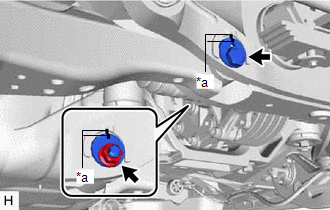

3. Align the matchmarks on the rear No. 2 suspension camber adjust cam, rear suspension toe adjust cam sub-assembly and rear suspension member sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

4. Fully tighten the nut.

   Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

   NOTE:

   • Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.
   • Make sure that the vehicle is unloaded when fully tightening the nut.

Refer to ADJUSTMENT [09/2015 - 08/2016]
