Meter / Gauge / Display - Service Information
>>
Trip Switch
>>
Components [10/2014 - ]
Components [10/2014 - ]

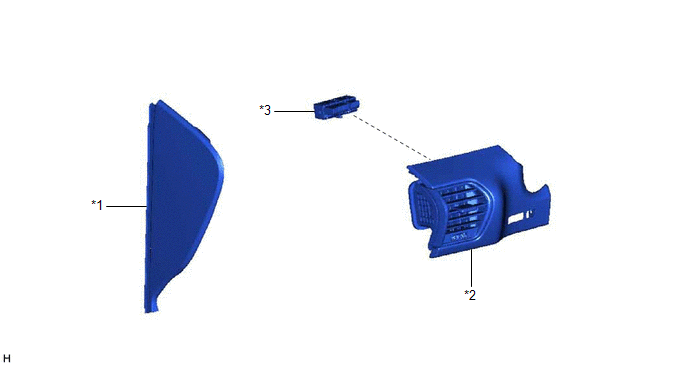

Fig 1: Trip Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
INSTRUMENT SIDE PANEL LH
*2
NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
*3
TRIP SWITCH
-
-
