Removal [10/2014 - ]: Procedure

  1. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 9 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 9 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 9 [05/2019 - ]

  2. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 10 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 10 [05/2019 - ]

  3. REMOVE TRIP SWITCH (LIGHT CONTROL RHEOSTAT)
    1. Using a screwdriver, detach the 2 claws and remove the trip switch (light control rheostat).

      HINT:

      Tape the screwdriver tip before use.

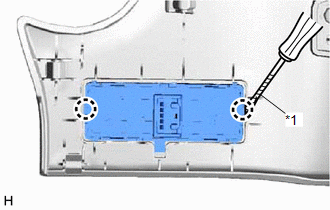

      GTY499407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape
