HEADUP Display
>>
Components [09/2017 - ]
Components [09/2017 - ]

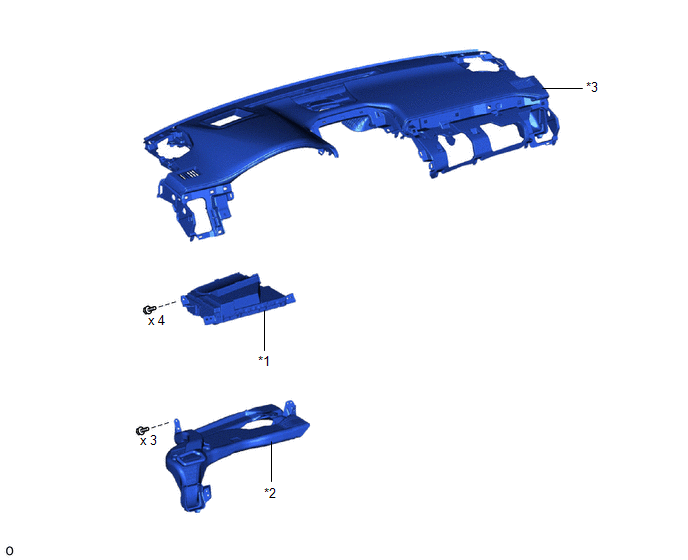

Fig 1: Headup Display Replacement Components [09/2017 - ] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
METER MIRROR SUB-ASSEMBLY (HEADUP DISPLAY)
*2
NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY
*3
UPPER INSTRUMENT PANEL SUB-ASSEMBLY
-
-

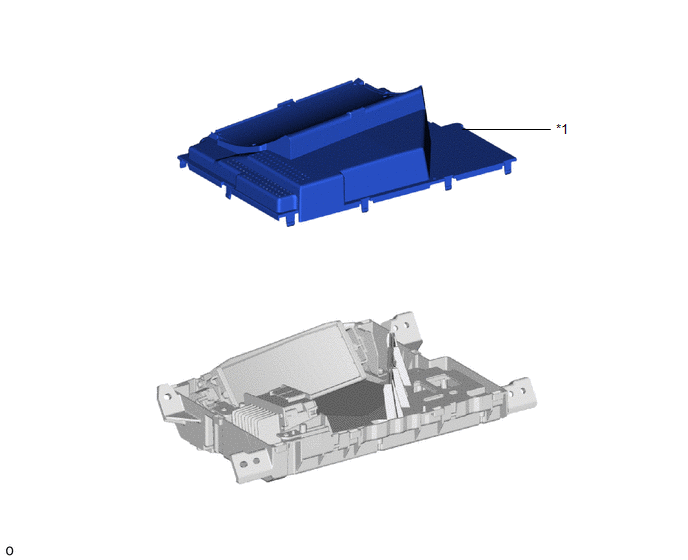

Fig 2: Headup Display Replacement Components [09/2017 - ] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 1 COMBINATION METER MIRROR PLATE
-
-
