Components [09/2015 - ]: Illustration

Fig 1: Combination Meter Replacement Components w/ Torque Specifications (1 Of 3)
GTY626188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Combination Meter Replacement Components (2 Of 3)
GTY416285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

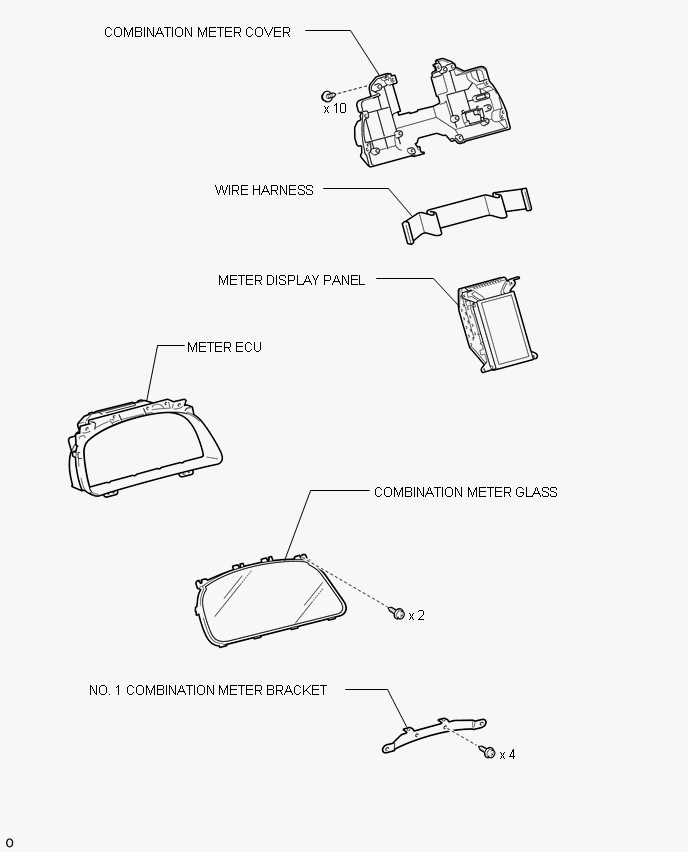

Fig 1: Combination Meter Replacement Components (3 Of 3)
GTY631858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
