Luggage Compartment Door Closer does not Operate [09/2015 - ]: Wiring Diagram

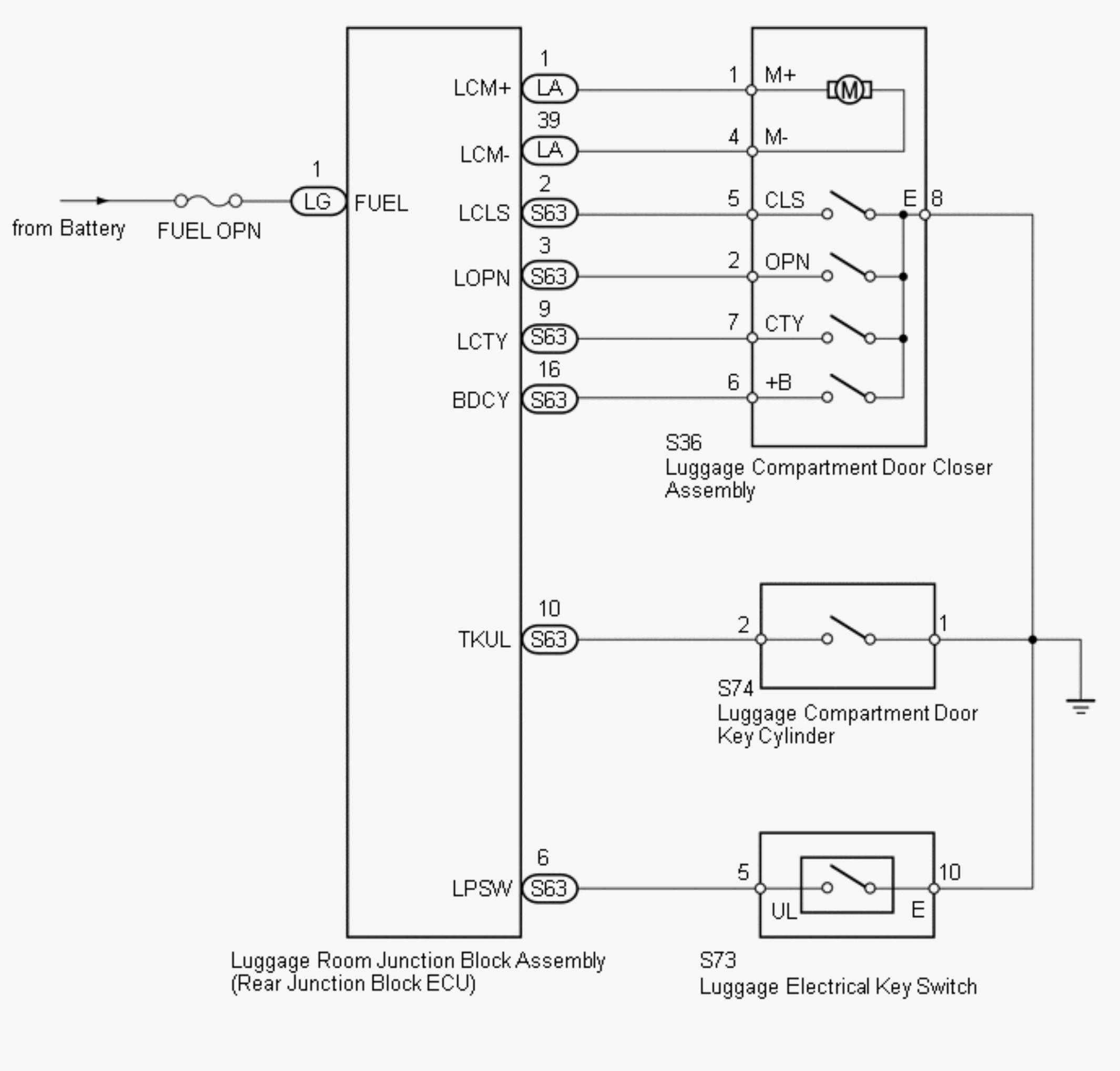

Fig 1: Luggage Compartment Door Closer Assembly Circuit Diagram

GTY618341

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
