Luggage Compartment Door Closer does not Operate [09/2015 - ]: Procedure

  1. READ VALUE USING TECHSTREAM
    1. Check the Data List for proper functioning of the luggage compartment door closer.
      BODY NO. 4 (REAR JUNCTION BLOCK ECU)

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Luggage Door Lock/Unlock Switch Luggage compartment door key cylinder switch signal / ON or OFF ON: Luggage compartment Door key cylinder is turned to open position
      OFF: Luggage compartment Door key cylinder switch is not turned      		 -
      Luggage Push Switch Luggage electrical key switch signal / ON or OFF ON: Luggage electrical key switch is ON
      OFF: Luggage electrical key switch is OFF      		 -
      Luggage Open Switch Luggage compartment door closer open switch signal / ON or OFF ON: Luggage compartment door closer open switch is ON
      OFF: Luggage compartment door closer open switch is OFF      		 -
      Luggage Pawl Switch Luggage compartment door closer pawl switch signal / ON or OFF ON: Luggage compartment door closer pawl switch is ON
      OFF: Luggage compartment door closer pawl switch is OFF      		 -
      Luggage Rotary Switch Luggage compartment door closer rotary switch signal / ON or OFF ON: Luggage compartment door closer rotary switch is ON
      OFF: Luggage compartment door closer rotary switch is OFF      		 -
      Luggage Courtesy Switch Luggage compartment door closer courtesy switch signal / ON or OFF ON: Luggage compartment door closer courtesy switch is ON
      OFF: Luggage compartment door closer courtesy switch is OFF      		 -
      RESULT

      Result Proceed to
      Luggage compartment door key cylinder switch signal malfunction A
      Luggage electrical key switch signal malfunction B
      Each switch in luggage compartment door closer assembly is malfunctioning C
      Data List normal D

    Result:  B

    B

    See step  4

    Result:  C

    C

    See step  6

    Result:  D

    D

    See step  8

    Result:  A

    A

    See step  2

  2. INSPECT LUGGAGE COMPARTMENT DOOR KEY CYLINDER
    GTY418538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the luggage compartment door key cylinder (Refer to REMOVAL [09/2015 - ] ).
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Switch Condition Specified Condition
      1 - 2 Not turned 10 kΩ or higher
      1 - 2 Open position Below 1 Ω

    Result:  NG

    NG

    REPLACE LUGGAGE COMPARTMENT DOOR KEY CYLINDER

    (Refer to REMOVAL [09/2015 - ] )

    Result:  OK

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (REAR JUNCTION BLOCK ECU - LUGGAGE COMPARTMENT DOOR KEY CYLINDER AND BODY GROUND)
    GTY668153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the S74 cylinder connector.
    2. Disconnect the S63 ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      S74-1 - Body ground Always Below 1 Ω
      S74-2 - S63-10 (TKUL) Always Below 1 Ω
      S74-2 or S63-10 (TKUL) - Body ground Always 10 kΩ or higher

    Result:  OK

    OK

    REPLACE LUGGAGE ROOM JUNCTION BLOCK ASSEMBLY (REAR JUNCTION BLOCK ECU)

    Result:  NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  4. INSPECT LUGGAGE ELECTRICAL KEY SWITCH
    GTY631622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the luggage electrical key switch (Refer to REMOVAL [09/2015 - ] ).
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Switch Condition Specified Condition
      5 (UL) - 10 (E) Luggage electrical key switch OFF 10 kΩ or higher
      5 (UL) - 10 (E) Luggage electrical key switch ON Below 1 Ω

    Result:  NG

    NG

    REPLACE LUGGAGE ELECTRICAL KEY SWITCH

    (Refer to REMOVAL [09/2015 - ] )

    Result:  OK

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (REAR JUNCTION BLOCK ECU - LUGGAGE ELECTRICAL KEY SWITCH AND BODY GROUND)
    GTY623343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the S63 ECU connector.
    2. Disconnect the S73 switch connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      S73-10 (E) - Body ground Always Below 1 Ω
      S73-5 (UL) - S63-6 (LPSW) Always Below 1 Ω
      S73-5 (UL) or S63-6 (LPSW) - Body ground Always 10 kΩ or higher

    Result:  OK

    OK

    REPLACE LUGGAGE ROOM JUNCTION BLOCK ASSEMBLY (REAR JUNCTION BLOCK ECU)

    Result:  NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  6. CHECK HARNESS AND CONNECTOR (REAR JUNCTION BLOCK ECU - LUGGAGE COMPARTMENT DOOR CLOSER AND BODY GROUND)
    GTY656593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the S36 closer connector.
    2. Disconnect the S63 ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      S36-2 (OPN) - S63-3 (LOPN) Always Below 1 Ω
      S36-5 (CLS) - S63-2 (LCLS) Always Below 1 Ω
      S36-6 (+B) - S63-16 (BDCY) Always Below 1 Ω
      S36-7 (CTY) - S63-9 (LCTY) Always Below 1 Ω
      S36-8 (E) - Body ground Always Below 1 Ω
      S36-2 (OPN) or S63-3 (LOPN)- Body ground Always 10 kΩ or higher
      S36-5 (CLS) or S63-2 (LCLS) - Body ground Always 10 kΩ or higher
      S36-6 (+B) or S63-16 (BDCY) - Body ground Always 10 kΩ or higher
      S36-7 (CTY) or S63-9 (LCTY) - Body ground Always 10 kΩ or higher

    Result:  NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  OK

    OK

    See step  7

  7. CHECK LUGGAGE COMPARTMENT DOOR CLOSER ASSEMBLY (OPERATION)
    1. Temporarily replace the luggage compartment door closer with a new or normally functioning one (Refer to REMOVAL [09/2015 - ] ).
    2. Check the luggage compartment door closer operation.

      OK

      Luggage compartment door closer normal operation.

    Result:  OK

    OK

    END (LUGGAGE COMPARTMENT DOOR CLOSER ASSEMBLY IS DEFECTIVE)

    Result:  NG

    NG

    REPLACE LUGGAGE ROOM JUNCTION BLOCK ASSEMBLY (REAR JUNCTION BLOCK ECU)

  8. CHECK HARNESS AND CONNECTOR (REAR JUNCTION BLOCK ECU - BATTERY)
    GTY638417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the LG ECU connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Condition Specified Condition
      LG-1 (FUEL) - Body ground Always 11 to 14 V

    Result:  NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  OK

    OK

    See step  9

  9. INSPECT LUGGAGE COMPARTMENT DOOR CLOSER ASSEMBLY
    GTY396739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the luggage compartment door closer (Refer to REMOVAL [09/2015 - ] ).
    2. Set the luggage compartment door closer assembly to the half-latch position.
    3. Apply battery voltage to the closer connector and check the closer operation.

      OK

      Measurement Condition Specified Condition
      Battery positive (+) → Terminal 1 (M+)
      Battery negative (-) → Terminal 4 (M-)      		 Door closer operation normal

    Result:  NG

    NG

    REPLACE LUGGAGE COMPARTMENT DOOR CLOSER ASSEMBLY

    (Refer to REMOVAL [09/2015 - ] )

    Result:  OK

    OK

    See step  10

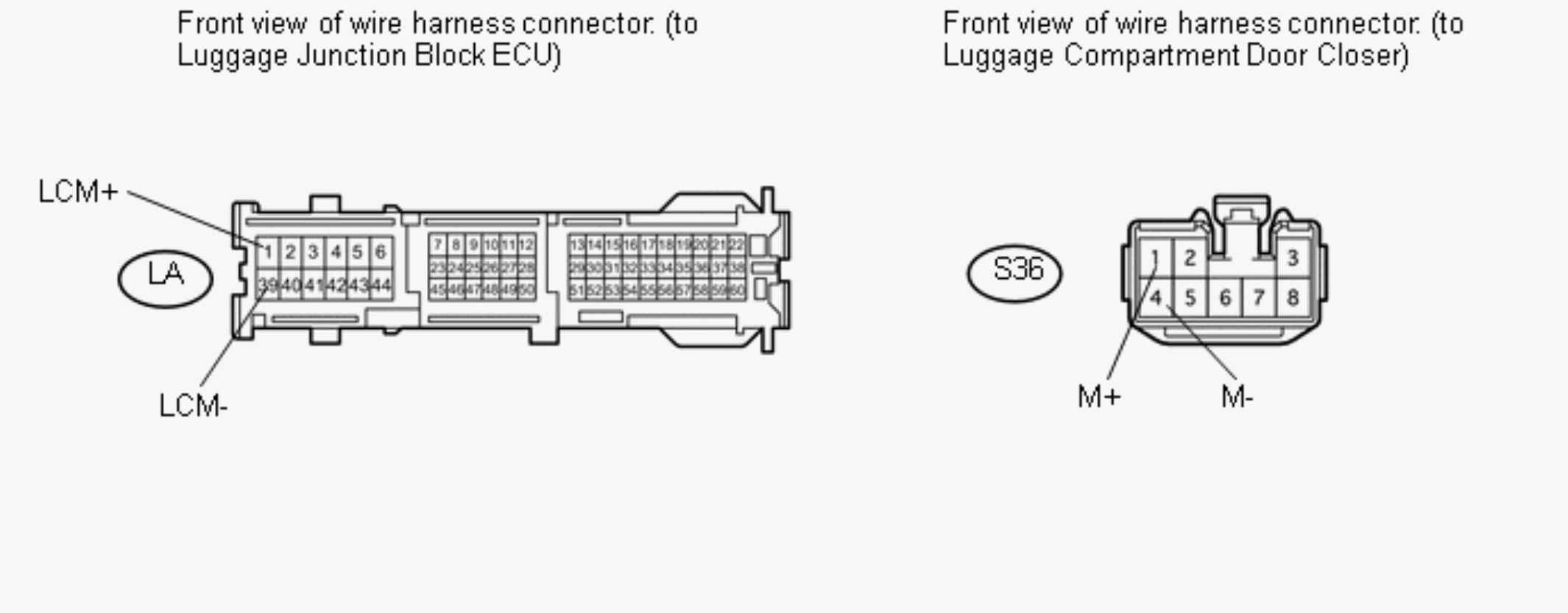

  10. CHECK HARNESS AND CONNECTOR (LUGGAGE JUNCTION BLOCK ECU - LUGGAGE COMPARTMENT DOOR CLOSER)
    GTY616367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the S36 closer connector.
    2. Disconnect the LA ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      S36-1 (M+) - LA-1 (LCM+) Always Below 1 Ω
      S36-4 (M-) - LA-39 (LCM-) Always Below 1 Ω
      S36-1 (M+) or LA-1 (LCM+) - Body ground Always 10 kΩ or higher
      S36-4 (M-) or LA-39 (LCM-) - Body ground Always 10 kΩ or higher

    Result:  OK

    OK

    REPLACE LUGGAGE ROOM JUNCTION BLOCK ASSEMBLY (REAR JUNCTION BLOCK ECU)

    Result:  NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
