Disassembly [04/2013 - ]: Procedure

  1. REMOVE COMBINATION METER GLASS (for Standard)
    1. Disengage the 8 claws to remove the combination meter glass.
      GTY469317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

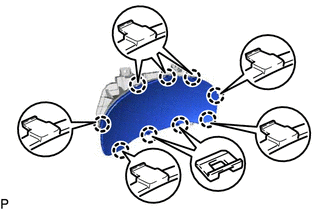

  2. REMOVE COMBINATION METER GLASS (for Sport Package)
    1. Disengage the 9 claws to remove the combination meter glass.
      GTY464981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
