Installation [08/2020 - ]: Procedure
- ADJUST COMPRESSOR OIL
- When replacing the cooler compressor assembly with a new one, gradually discharge the refrigerant gas from the service valve, and then drain the following amount of oil from the new cooler compressor assembly before installation.
Standard
(Oil capacity inside the new cooler compressor: 135 + 15 cc (4.57 + 0.51 fl.oz.)) - (Remaining oil amount in the removed compressor and magnetic clutch) = (Oil amount to be removed from the new compressor when replacing)
NOTE:- When checking the compressor oil level, follow the A/C system precautions.
- If a new cooler compressor assembly with pulley is installed without removing the same amount of compressor oil as is remaining in the pipes, the amount of compressor oil will be excessive. This prevents heat exchange in the refrigerant cycle and will cause the air conditioning system to malfunction.
- A certain amount of compressor oil remains in the cooler compressor assembly with pulley during circulation and the cooler compressor assembly may be damaged if the amount of compressor oil is more/less than this amount. Therefore, make sure to adjust the amount of compressor oil correctly.
- If the amount of compressor oil remaining in the removed cooler compressor assembly with pulley is excessively low, check for compressor oil leaks.
- Make sure to use ND-OIL 12 or equivalent compressor oil.
- When replacing the cooler compressor assembly with a new one, gradually discharge the refrigerant gas from the service valve, and then drain the following amount of oil from the new cooler compressor assembly before installation.
- INSTALL COOLER COMPRESSOR ASSEMBLY
- Install the stud bolt.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
- Temporarily install the cooler compressor assembly with the 3 bolts and nut.

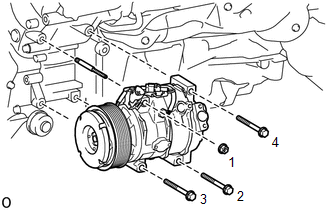

- Tighten the 3 bolts and nut in the sequence shown in the illustration.
for bolt
Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)
for nut
Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)
- Connect the connector.
- Install the stud bolt.
- CONNECT SUCTION HOSE SUB-ASSEMBLY
- Remove the attached vinyl tape from the suction hose sub-assembly.
- Sufficiently apply compressor oil to a new O-ring and the fitting surface of the cooler compressor assembly.
Compressor oil
ND-OIL 12 or equivalent
- Install the O-ring to the suction hose sub-assembly.

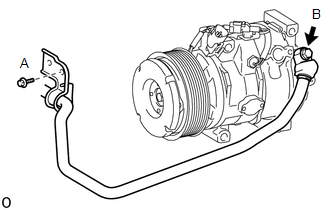

- Connect the suction hose sub-assembly to the cooler compressor assembly with the 2 bolts.
for bolt A
Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)
for bolt B
Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
- CONNECT DISCHARGE HOSE SUB-ASSEMBLY
- Remove the attached vinyl tape from the discharge hose sub-assembly.
- Sufficiently apply compressor oil to a new O-ring and the fitting surface of the cooler compressor assembly.
Compressor oil
ND-OIL 12 or equivalent
- Install the O-ring to the discharge hose sub-assembly.

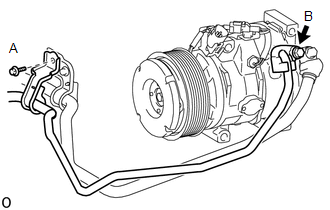

- Connect the discharge hose sub-assembly to the cooler compressor assembly with the 2 bolts.
for bolt A
Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)
for bolt B
Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
- INSTALL FAN SHROUD
Refer to PROCEDURE - Step 10
- INSTALL NO. 1 RADIATOR HOSE
Refer to PROCEDURE - Step 11
- INSTALL RADIATOR RESERVOIR ASSEMBLY
Refer to PROCEDURE - Step 12
- INSTALL FRONT FENDER APRON SEAL LH
Refer to PROCEDURE - Step 85
- INSTALL REAR ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 86
- INSTALL TRANSMISSION UNDER COVER
Refer to PROCEDURE - Step 87
- INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 88
- INSTALL LOWER FRONT BUMPER COVER
Refer to PROCEDURE - Step 89
- ADD ENGINE COOLANT
Refer to PROCEDURE - Step 6
- INSTALL FAN AND GENERATOR V BELT
Refer to INSTALLATION [08/2015 - ]
- CHECK FOR COOLANT LEAK
Refer to PROCEDURE - Step 1
- CHARGE REFRIGERANT
See step 2
- WARM UP ENGINE
See step 3
- CHECK FOR REFRIGERANT GAS LEAK
See step 4
