Removal [08/2015 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    See step  16[08/2015 - 08/2020], or see step  16[08/2020 - ]

  2. REMOVE UPPER RADIATOR SUPPORT SEAL

    See step  15[08/2015 - 08/2020], or see step  15[08/2020 - ]

  3. REMOVE FAN AND GENERATOR V BELT

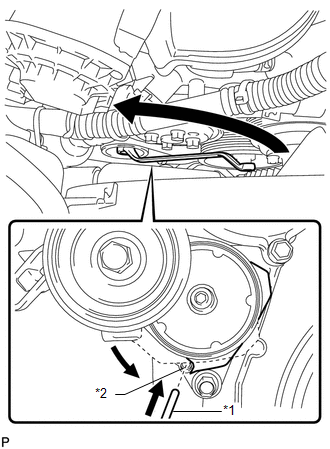

    1. While turning the belt tensioner counterclockwise, align the service hole for the belt tensioner and the belt tensioner fixing position, and then insert a bar with a diameter of 5 mm (0.197 in.) into the service hole to fix the belt tensioner in place.
      GTY630928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Bar
      *2 Service Hole

      HINT:

      The pulley bolt for the belt tensioner has a left-hand thread.

    2. Remove the fan and generator V belt.
