Removal [08/2019 - ]: Procedure

  1. REMOVE NO. 2 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 18 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 18 [08/2021 - ]

  2. REMOVE LIGHT CONTROL RHEOSTAT

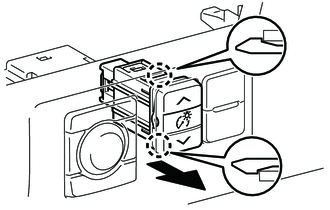

    1. Detach the 2 claws and remove the light control rheostat.
      GTY961546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
