Removal [08/2015 - 08/2019]: Procedure

  1. REMOVE NO. 2 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 18

  2. REMOVE LIGHT CONTROL RHEOSTAT

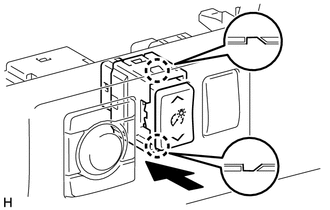

    1. Detach the 2 claws and remove the light control rheostat.
      GTY287137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
