Installation [08/2021 - ]: Procedure

  1. INSTALL CLOCK ASSEMBLY

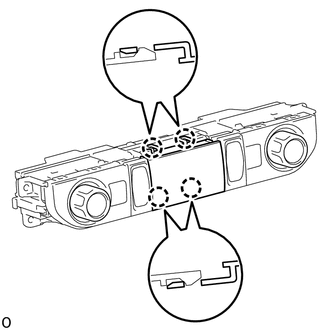

    1. Attach the claw to install the clock assembly.
      GTY1083705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to INSTALLATION [08/2021 - ]
