Removal [08/2019 - ]: Procedure

  1. REMOVE FRONT BUMPER COVER

    Refer to PROCEDURE - Step 4

  2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

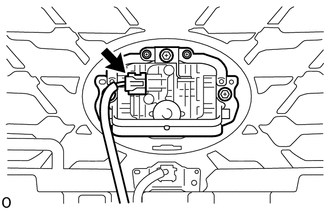

    1. Disconnect the connector.
      GTY951056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

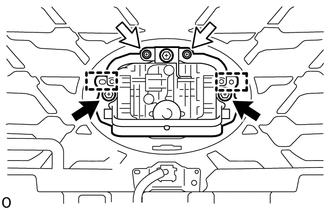

    2. Remove the 2 bolts and 2 screws.
      GTY951054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 2 guides and remove the millimeter wave radar sensor assembly.
