Installation [10/2015 - ]: Procedure

1. Install the lock nut and rear steering tie rod assembly LH to the steering rack end until the matchmarks are aligned.

   HINT:

   After adjusting toe-in, tighten the lock nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

HINT:

Perform the same procedure as for the LH side.

1. Align the 2 guide pins with the rear suspension member sub-assembly and install the rear suspension arm bracket assembly with the 4 bolts.

   Torque: 97 N*m (989 kgf*cm, 72 ft.*lbf)

   NOTE:

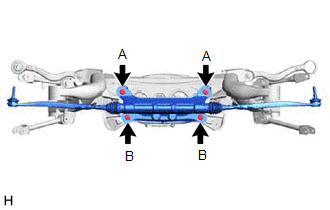

   The bolts (B) are longer than the bolts (A). Make sure to install the bolts (A) and the bolts (B) to their correct locations.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to INSTALLATION [10/2015 - ]

1. Install the rear steering tie rod assembly LH to the rear axle assembly with a new nut.

   Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

HINT:

Perform the same procedure as for the LH side.

Refer to PROCEDURE - Step 1

Refer to INITIALIZATION [10/2015 - ]

Refer to ADJUSTMENT [10/2015 - ]

Refer to TEST MODE PROCEDURE [10/2015 - 09/2017] , or Refer to TEST MODE PROCEDURE [09/2017 - ]

Refer to INITIALIZATION [10/2015 - ]

Refer to ADJUSTMENT [10/2015 - ]
