Installation [09/2016 - ]: Procedure

1. Install the rear No. 1 spring bumper to the rear shock absorber assembly.

1. Install the rear actuator support bracket, rear No. 2 shock absorber cushion, rear suspension support assembly, rear No. 1 shock absorber cushion and rear shock absorber cushion washer to the rear shock absorber assembly.
   NOTE:

   Be sure to install the rear shock absorber cushion washer in the correct direction.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear No. 2 Shock Absorber Cushion
   *2	Rear Suspension Support Assembly
   *3	Rear No. 1 Shock Absorber Cushion
   *4	Rear Shock Absorber Cushion Washer
   *5	Rear Actuator Support Bracket

2. Temporarily tighten a new rear support to rear shock absorber nut.

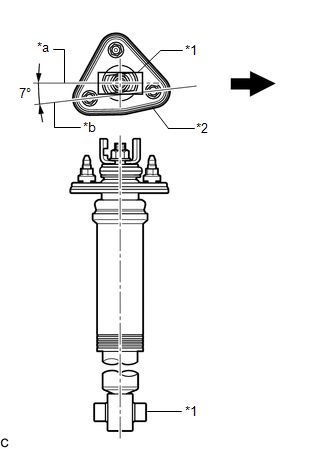

3. Align the rear suspension support assembly so that the stud bolts of the rear suspension support assembly are positioned as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear Shock Absorber Lower Bushing
   *2	Rear Suspension Support Assembly
   *a	Rear Shock Absorber Lower Bushing Axis Line
   *b	Rear Suspension Support Assembly Stud (Toward Vehicle Interior) 2-point Axis Line
   	Front of the Vehicle

4. Secure the rear actuator support bracket of the rear shock absorber assembly between aluminum plates in a vise.
   NOTE:

   Do not overtighten the vise.

5. Using a 17 mm deep socket wrench, fully tighten the rear support to rear shock absorber nut.

   Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

   NOTE:

   • Do not pinch the wire harness when tightening the rear support to rear shock absorber nut with the deep socket wrench.
   • When inserting the wire harness and connector into the deep socket wrench, do not excessively bend the wire harness.

1. Install the 3 nuts to the upper side of the rear shock absorber assembly.

   Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

2. Engage the 2 clamps and install the actuator harness clamp to the vehicle body.
3. Engage the wire harnesses clamp to the actuator harness clamp.
4. Connect the connector.

See step  1

See step  2

See step  3

See step  4

See step  3

See step  6

See step  5

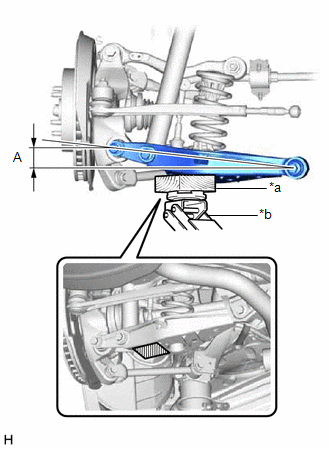

1. Using a jack and wooden block, apply load to the suspension so that the rear No. 2 suspension arm assembly is positioned as shown in the illustration.
   WARNING:

   • Do not raise the jack up too high.
   • The vehicle could fall, resulting in a serious accident.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wooden Block
   *b	Jack
   	Wooden block placement location

   Standard Length (A)

   18.1 mm (0.713 in.)

See step  9

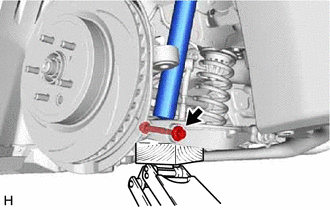

1. Install the rear shock absorber assembly with the bolt.

   Torque: 110 N*m (1122 kgf*cm, 81 ft.*lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  11

See step  12

See step  14

Refer to PROCEDURE - Step 1

Refer to INSTALLATION [10/2015 - ]

Refer to ADJUSTMENT [10/2015 - ]

Refer to INITIALIZATION [10/2015 - ]

Refer to ADJUSTMENT [10/2015 - ]
