Installation [10/2015 - ]: Procedure
- INSTALL FLYWHEEL HOUSING SIDE COVER
- Install the flywheel housing side cover.
- INSTALL STARTER ASSEMBLY
- Install the starter assembly with the 2 bolts.
Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

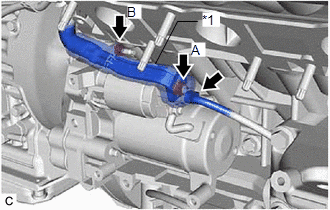

- Install the 2 nuts and connect the engine wire.
*1 Terminal Cover Nut A
Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
Nut B
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
- Close the terminal cover.
- Connect the starter assembly connector.
- Install the starter assembly with the 2 bolts.
- INSTALL NO. 3 EXHAUST MANIFOLD HEAT INSULATOR
- Install the No. 3 exhaust manifold heat insulator with the 3 bolts.
Torque: 11.5 N*m (117 kgf*cm, 8 ft.*lbf)
- Install the No. 3 exhaust manifold heat insulator with the 3 bolts.
- INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH
Refer to INSTALLATION [10/2015 - ]
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2015 - 09/2016] , or Refer to INITIALIZATION [09/2016 - 09/2017] , or Refer to INITIALIZATION [09/2017 - ]
