Installation [10/2015 - ]: Procedure
- INSTALL REAR DRIVE SHAFT ASSEMBLY LH
- Install a new shaft snap ring.NOTE:
Face the end gap of the shaft snap ring downward.
- Coat the splines of the rear drive inboard joint assembly with ATF WS.

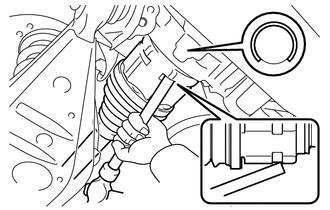

- Align the inboard joint splines, and using a brass bar and a hammer, install the rear drive shaft assembly LH.NOTE:
- Face the end gap of the shaft snap ring downward.
- Do not damage the rear drive shaft oil seal.
- Do not damage the inboard joint boot.
- Install the rear drive shaft assembly LH while keeping it level.
HINT:
Confirm whether the drive shaft is securely driven in by checking the reaction force and sound.
- Install a new shaft snap ring.
- INSTALL REAR DRIVE SHAFT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- ADD TORQUE TRANSFER MODULE FLUID
Refer to PROCEDURE - Step 4
- INSPECT FOR TORQUE TRANSFER MODULE FLUID AND DIFFERENTIAL OIL LEAK
Refer to PROCEDURE - Step 6
- INSTALL REAR AXLE ASSEMBLY LH
Refer to INSTALLATION [10/2015 - ]
- INSTALL REAR AXLE ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- INSTALL REAR SUSPENSION MEMBER BRACE LH
- Install the rear suspension member brace LH with the 2 bolts.
Torque: 56 N*m (571 kgf*cm, 41 ft.*lbf)
- Install the rear suspension member brace LH with the 2 bolts.
- INSTALL REAR SUSPENSION MEMBER BRACE RH
HINT:
Use the same procedure as for the LH side.
