Components [10/2015 - ]: Illustration

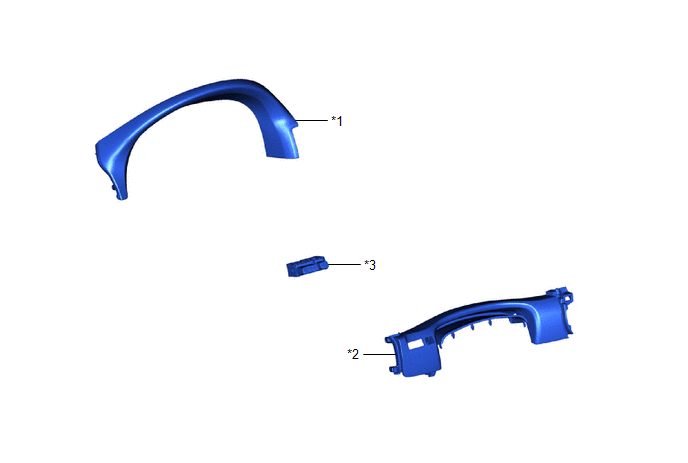

Fig 1: Light Control Rheostat Replacement Components
GTY631261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY *2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
*3 LIGHT CONTROL RHEOSTAT (TRIP SWITCH) - -
