Removal [10/2015 - 09/2017]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [10/2015 - 09/2017]

  2. REMOVE HEADUP DISPLAY
    1. Remove the 4 screws.
      GTY656933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guides to remove the headup display.
  3. REMOVE NO. 5 INSTRUMENT PANEL WIRE
    1. Disconnect the connector to remove the No. 5 instrument panel wire.

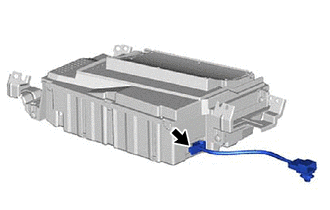

      GTY656938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 COMBINATION METER MIRROR BRACKET (for LH Side)

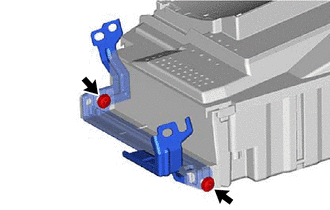

    GTY656939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws and No. 1 combination meter mirror bracket.
  5. REMOVE NO. 1 COMBINATION METER MIRROR BRACKET (for RH Side)
    1. Remove the 2 screws and No. 1 combination meter mirror bracket.

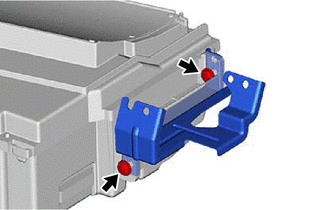

      GTY656936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
