Installation [10/2015 - ]: Procedure

  1. INSTALL NO. 1 COMBINATION METER MIRROR BRACKET (for RH Side)
    1. Install the No. 1 combination meter mirror bracket with the 2 screws.
  2. INSTALL NO. 1 COMBINATION METER MIRROR BRACKET (for LH Side)
    1. Install the No. 1 combination meter mirror bracket with the 2 screws.
  3. INSTALL NO. 5 INSTRUMENT PANEL WIRE
    1. Connect the connector to install the No. 5 instrument panel wire.

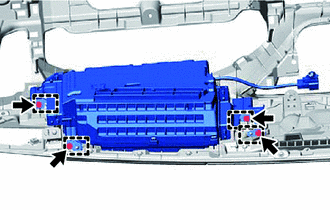

  4. INSTALL HEADUP DISPLAY
    1. Disengage the guides to install the headup display.
      GTY656933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 screws.
  5. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to INSTALLATION [10/2015 - ]
