Meter / Gauge / Display - Service Information
>>
HEADUP Display
>>
Components [10/2015 - ]
>>
Illustration
Components [10/2015 - ]: Illustration

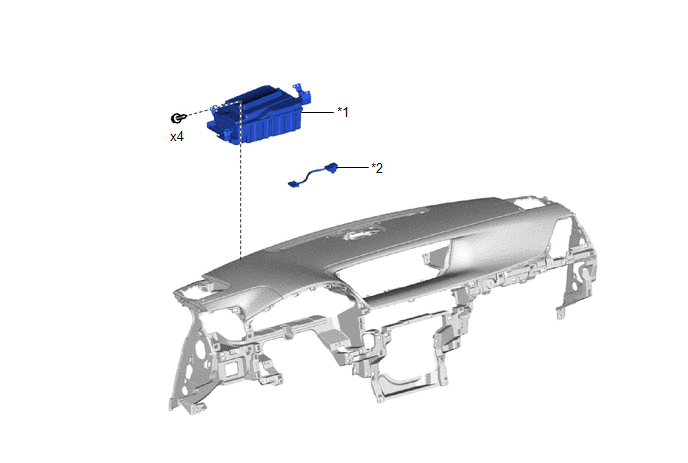

Fig 1: Headup Display Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
HEADUP DISPLAY
*2
NO. 5 INSTRUMENT PANEL WIRE

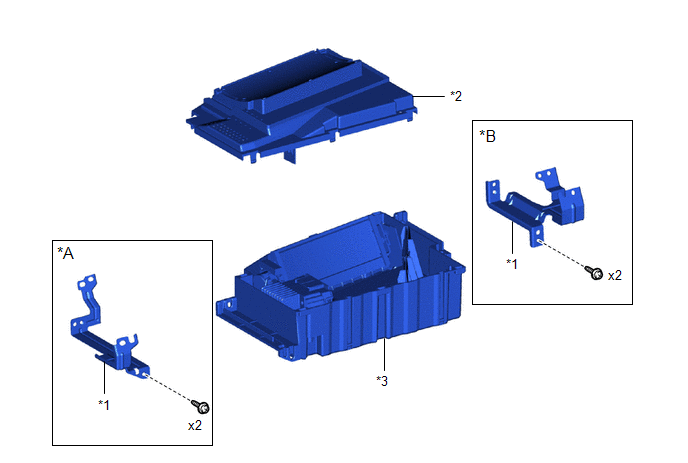

Fig 1: Headup Display Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
for LH Side
*B
for RH Side
*1
NO. 1 COMBINATION METER MIRROR BRACKET
*2
NO. 1 COMBINATION METER MIRROR PLATE
*3
COMBINATION METER MIRROR ECU
-
-
