Installation [10/2015 - ]: Procedure

  1. INSTALL HEADUP DISPLAY SWITCH ASSEMBLY

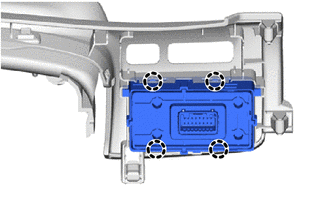

    1. Engage the claws to install the headup display switch assembly.
      GTY656928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL TRIP SWITCH

    See step  1

  3. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  4. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 23

  5. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to INSTALLATION [10/2015 - ]

  6. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Refer to PROCEDURE - Step 15
