Installation [10/2015 - ]: Procedure

  1. INSTALL CLOCK ASSEMBLY

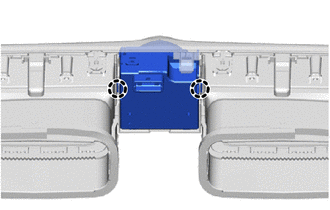

    1. Engage the claws to install the clock assembly.
      GTY522401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 14

  3. INSTALL RADIO RECEIVER ASSEMBLY

    Refer to INSTALLATION [10/2015 - 09/2017] , or Refer to INSTALLATION [09/2017 - ]
