Meter / Gauge / Display - Service Information
>>
Clock
>>
Components [10/2015 - ]
>>
Illustration
Components [10/2015 - ]: Illustration

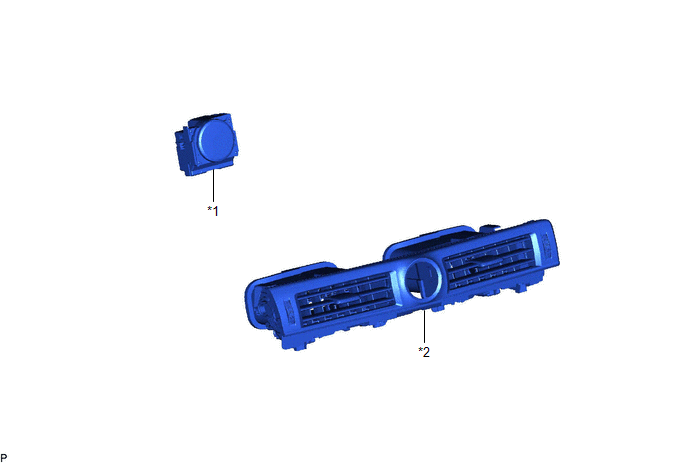

Fig 1: Clock Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CLOCK ASSEMBLY
*2
NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
