Reassembly [10/2015 - ]: Procedure

  1. INSTALL ACCESSORY METER GLASS

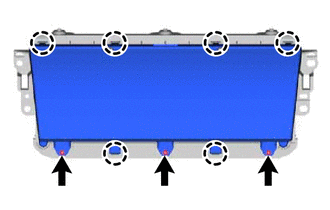

    1. Engage the claws to install the accessory meter glass.
      GTY625446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 3 screws.
