Components [10/2015 - ]: Illustration

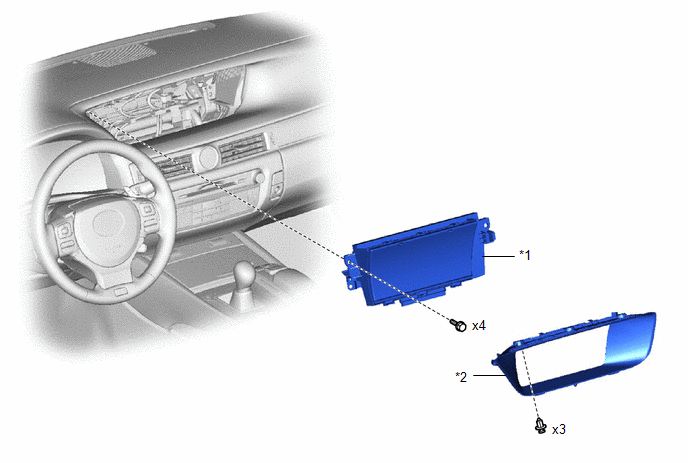

Fig 1: Accessory Meter Replacement Components (1 Of 2)
GTY671142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ACCESSORY METER ASSEMBLY *2 INSTRUMENT UPPER CLUSTER FINISH PANEL

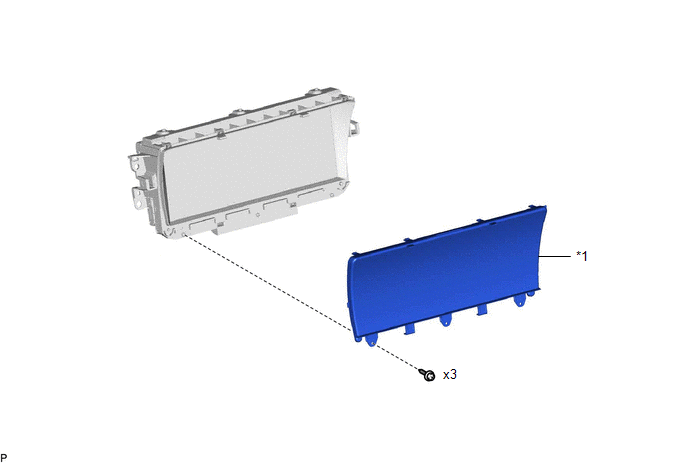

Fig 1: Accessory Meter Replacement Components (2 Of 2)
GTY681510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ACCESSORY METER GLASS - -
