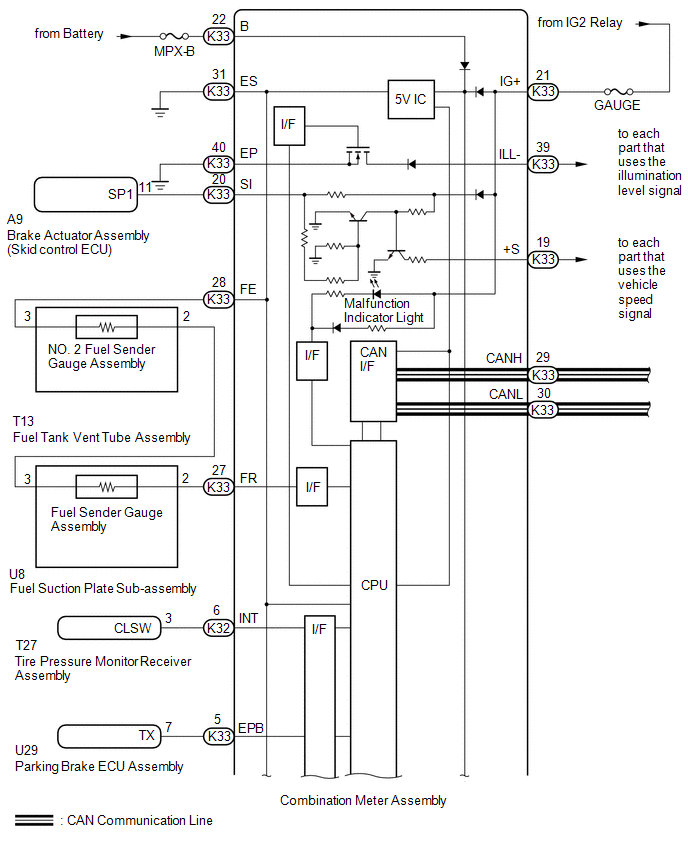

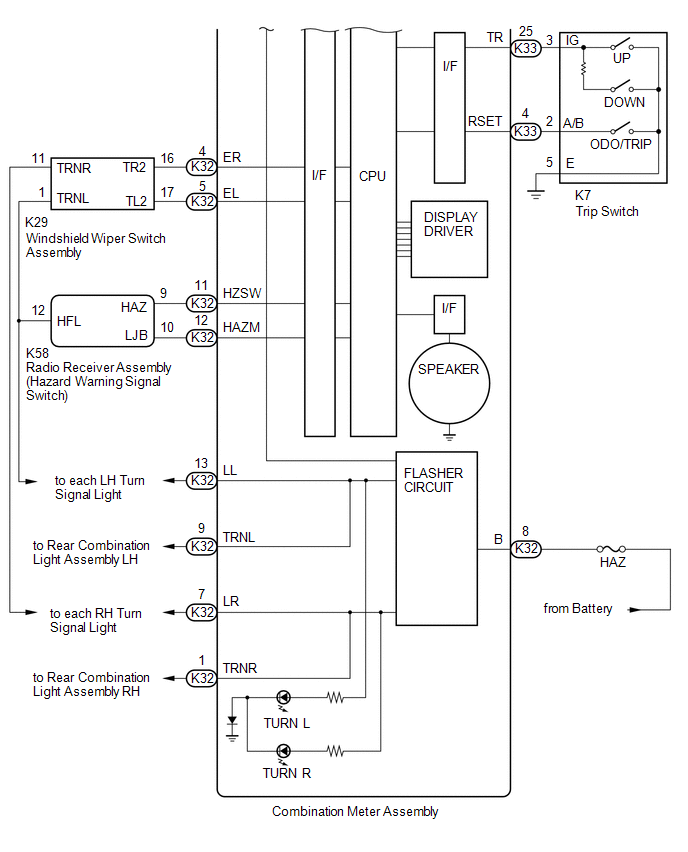

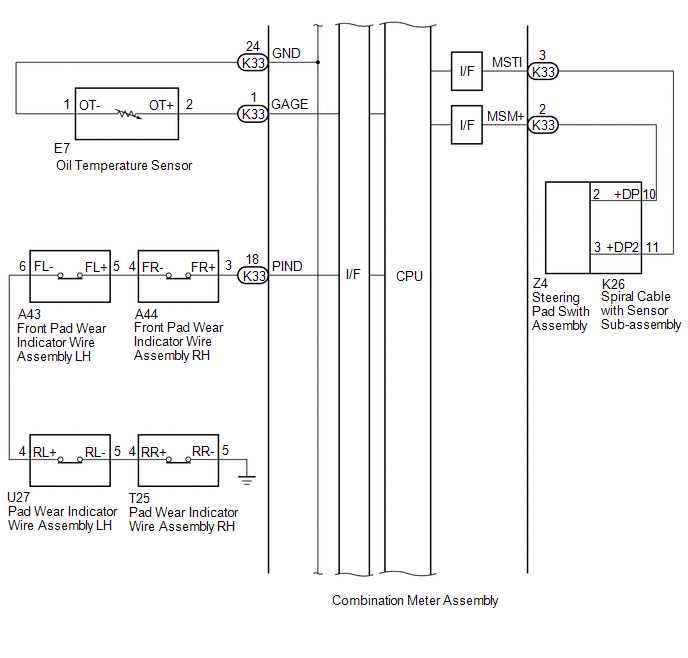

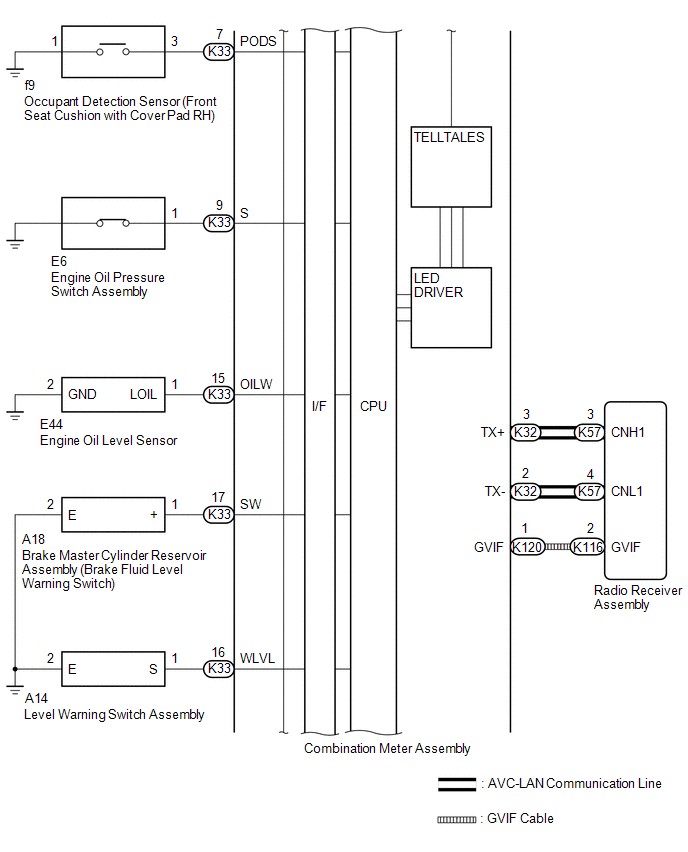

Home >> Lexus >> 2016 >> GS F >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge / Display - Diagnostics - Introduction (1 Of 2) >> Meter / Gauge System >> System Diagram [10/2015 - ] >> System Diagram [10/2015 - ]
