Parts Location [09/2014 - 10/2015]: Illustration

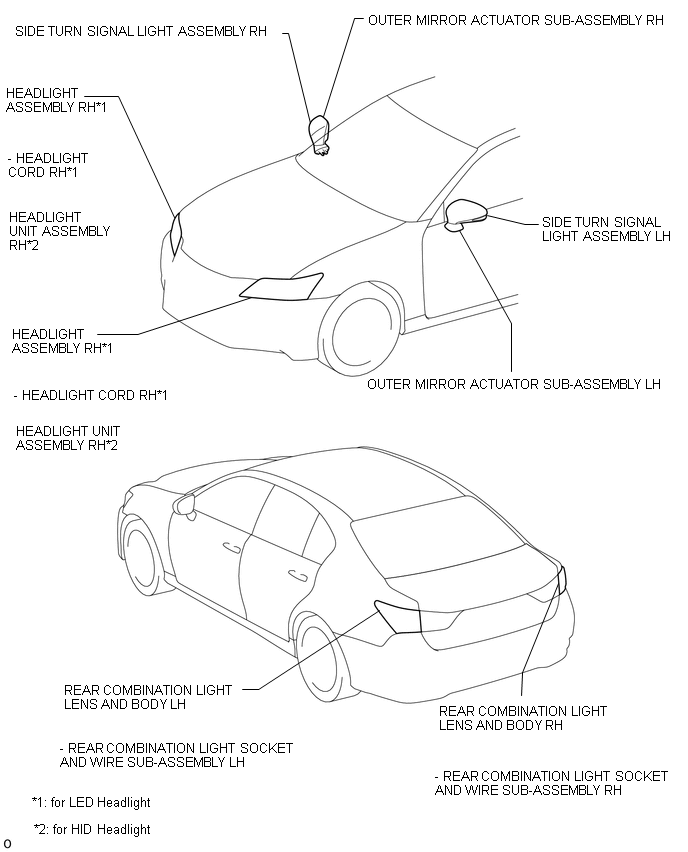

Fig 1: Meter / Gauge System Component Location (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

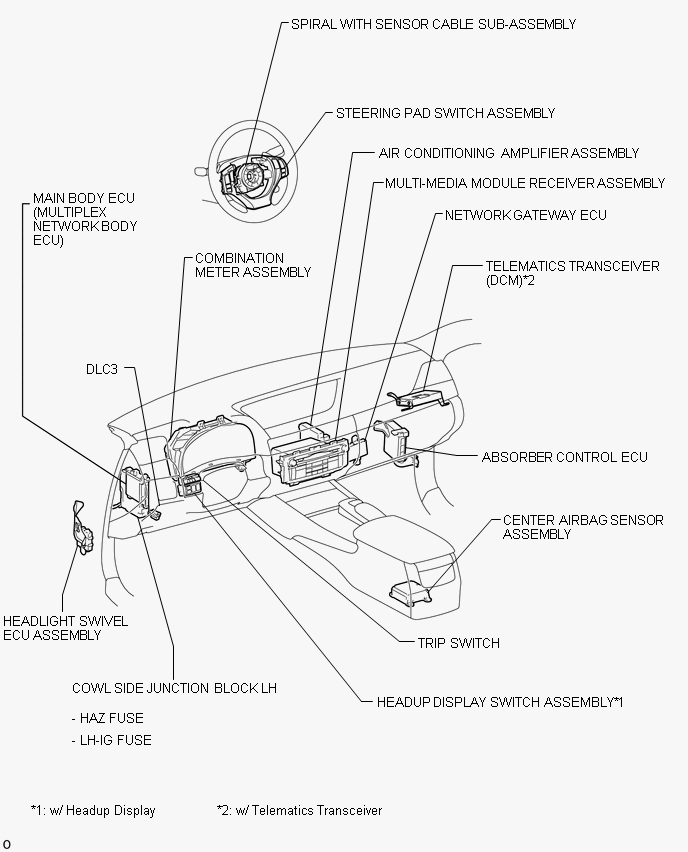

Fig 1: Meter / Gauge System Component Location (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

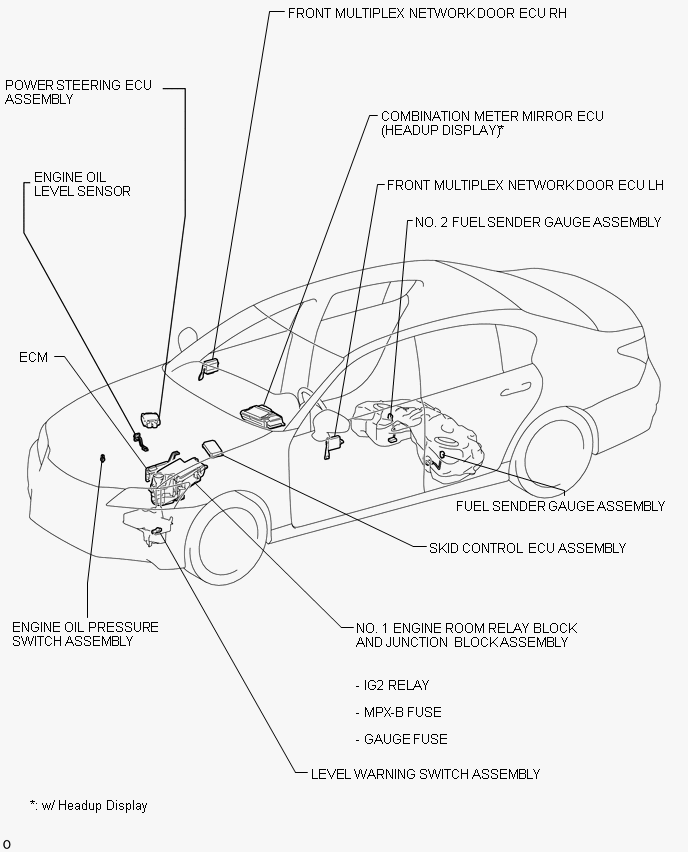

Fig 1: Meter / Gauge System Component Location (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

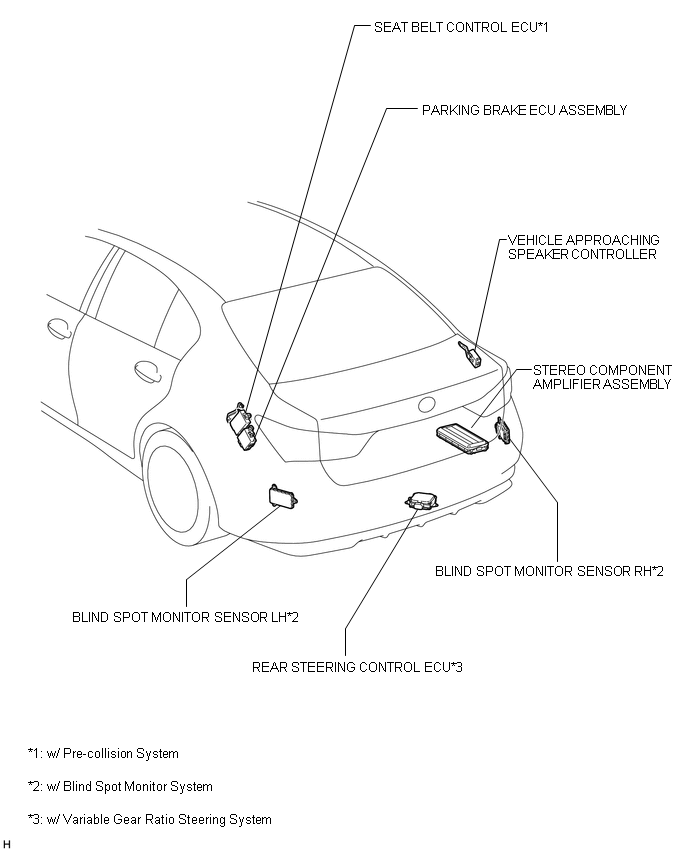

Fig 1: Meter / Gauge System Component Location (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

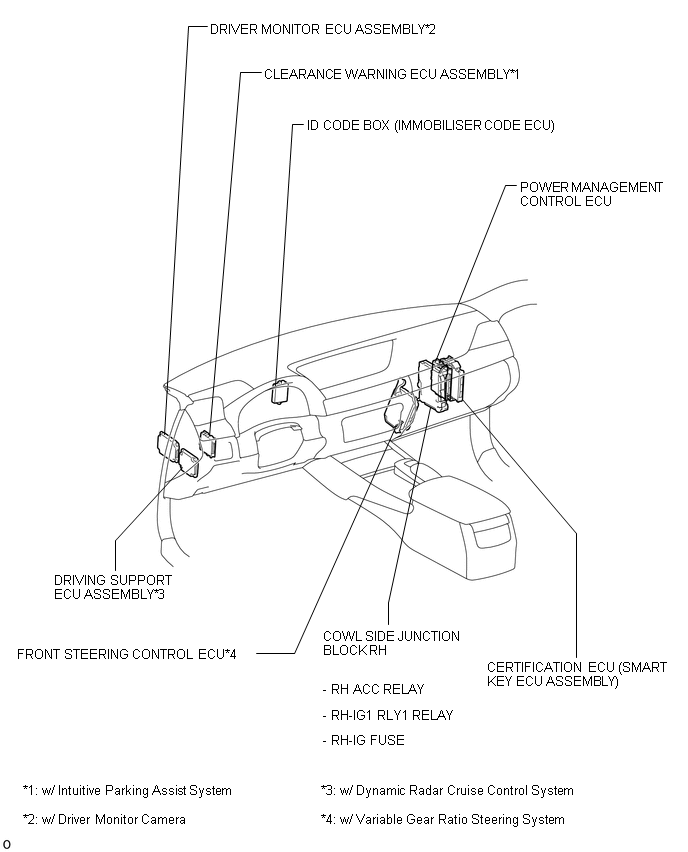

Fig 1: Meter / Gauge System Component Location (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
