DTC B150A: Lost Communication with HMI-LAN [07/2015 - ]: Wiring Diagram

  1. w/ Navigation System

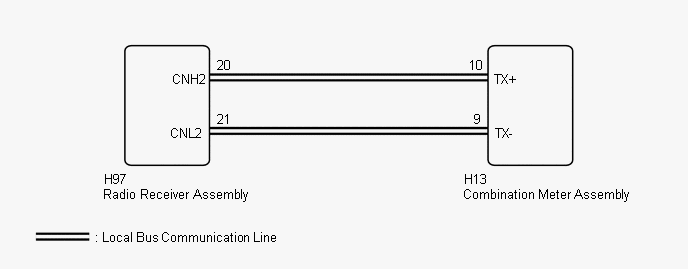

    Fig 1: Radio Receiver Assembly (W/ Navigation System) Wiring Diagram
    GTY654280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Navigation System

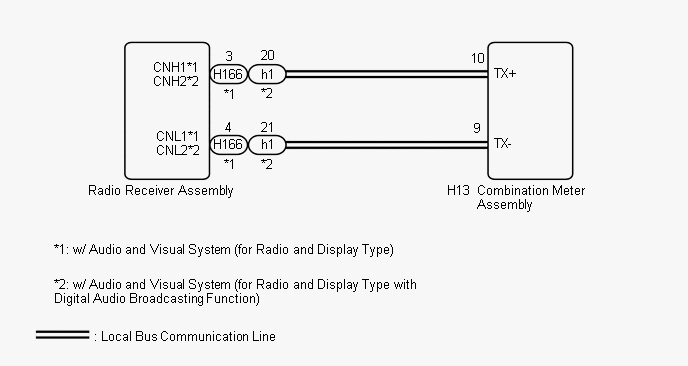

    Fig 2: Radio Receiver Assembly (W/O Navigation System) Wiring Diagram
    GTY658923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
