DTC C2174/74: Vehicle Speed Signal Malfunction; DTC C2191/91: Vehicle Speed Signal Error (Test Mode DTC) [03/2014 - ]: Wiring Diagram

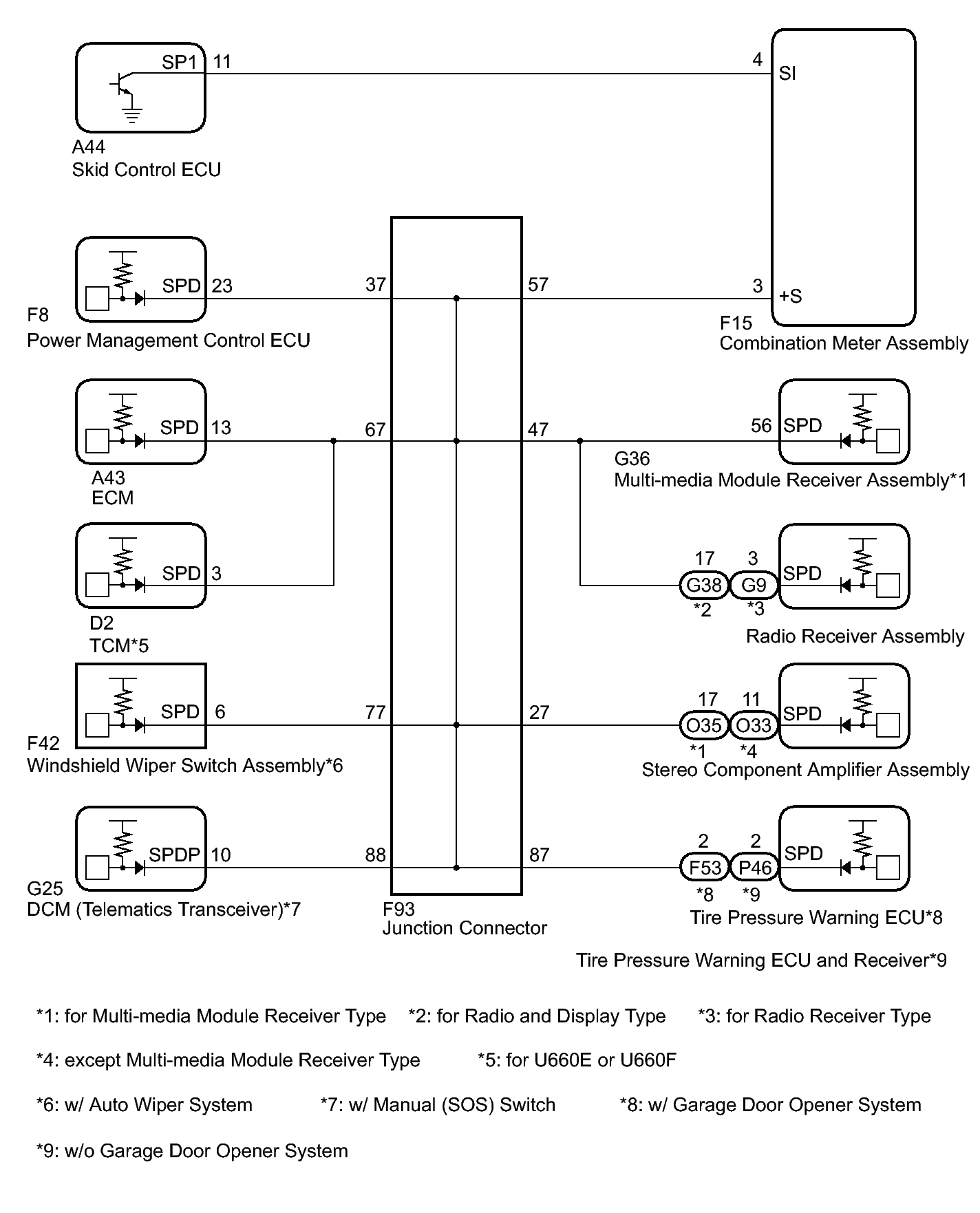

Fig 1: Vehicle Speed Signal Wiring Diagram
GTY466326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
