Home >> Lexus >> 2015 >> NX 300h FWD >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System - Diagnostic Codes (3 Of 3) & Symptom Tests >> Airbag System >> DTC B1905: Short in P/T Squib (LH) Circuit; DTC B1906: Open in P/T Squib (LH) Circuit; DTC B1907: Short in P/T Squib (LH) Circuit (to Ground); DTC B1908: Short in P/T Squib (LH) Circuit (to +B) [05/2019 - ] >> Wiring Diagram

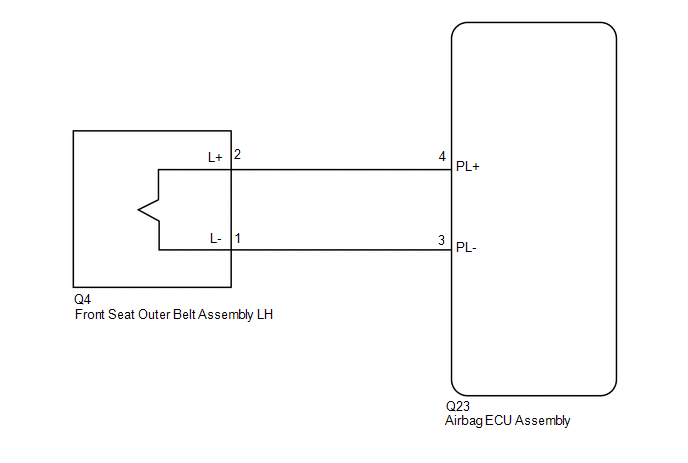

DTC B1905: Short in P/T Squib (LH) Circuit; DTC B1906: Open in P/T Squib (LH) Circuit; DTC B1907: Short in P/T Squib (LH) Circuit (to Ground); DTC B1908: Short in P/T Squib (LH) Circuit (to +B) [05/2019 - ]: Wiring Diagram

GTY513721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
