Airbag System - Diagnostic Codes (3 Of 3) & Symptom Tests
>>
Airbag System
>>
DTC B1820-55: Short in Side Squib RH Circuit; DTC B1821-55: Open in Side Squib RH Circuit; DTC B1822-55: Short to GND in Side Squib RH Circuit; DTC B1823-55: Short to B+ in Side Squib RH Circuit [10/2014 - 05/2019]
>>

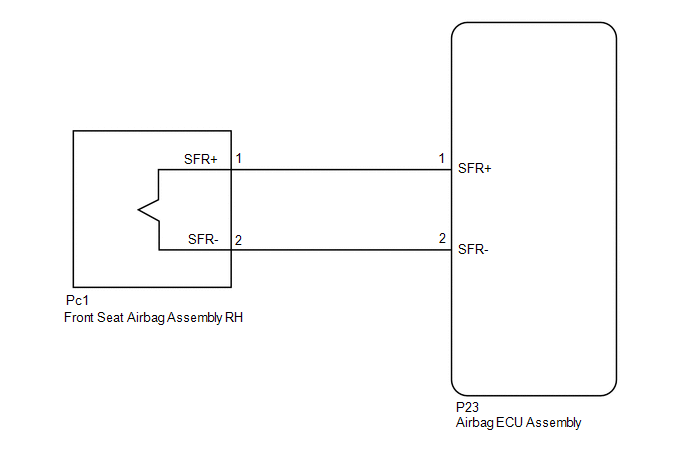

Wiring Diagram
DTC B1820-55: Short in Side Squib RH Circuit; DTC B1821-55: Open in Side Squib RH Circuit; DTC B1822-55: Short to GND in Side Squib RH Circuit; DTC B1823-55: Short to B+ in Side Squib RH Circuit [10/2014 - 05/2019]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
