Components [09/2015 - 09/2017]

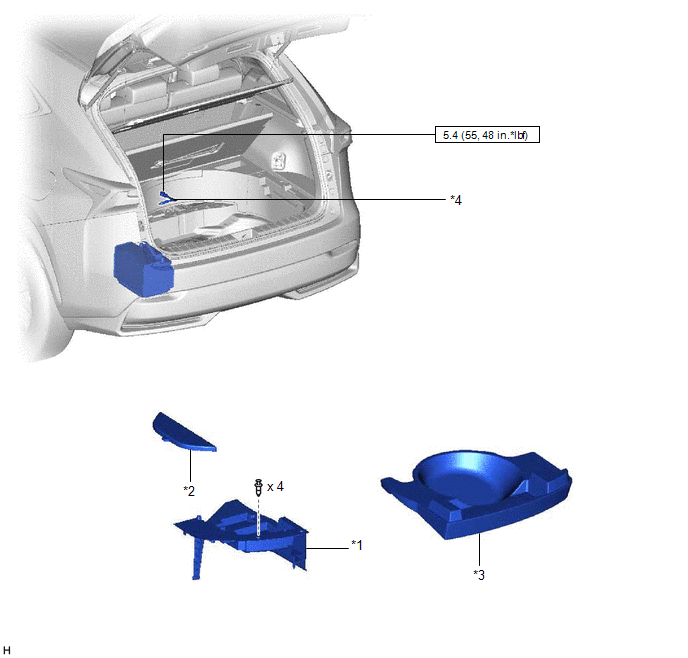

| Callout | Description | Callout | Description |
| *1 | DECK FLOOR BOX LH | *2 | NO. 3 DECK BOARD SUB-ASSEMBLY |
| *3 | REAR DECK FLOOR BOX | *4 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| *1 | CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | *2 | COMBINATION METER ASSEMBLY |
| *3 | CONSOLE ARMREST ASSEMBLY | *4 | GLOVE COMPARTMENT DOOR ASSEMBLY |
| *5 | INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | *6 | INSTRUMENT SIDE PANEL LH |
| *7 | INSTRUMENT SIDE PANEL RH | *8 | LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL |
| *9 | MULTI-DISPLAY ASSEMBLY | *10 | NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY |
| *11 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *12 | NO. 1 SWITCH HOLE BASE |
| *13 | NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | *14 | UPPER NO. 1 CONSOLE PANEL GARNISH |
| *15 | UPPER NO. 2 CONSOLE PANEL GARNISH | *16 | UPPER REAR CONSOLE PANEL |
| Callout | Description | Callout | Description |
| *A | w/o Headup Display | *B | w/ Headup Display |
| *1 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY | *4 | FRONT NO. 3 SPEAKER ASSEMBLY |
| *5 | FRONT PILLAR GARNISH ASSEMBLY LH | *6 | FRONT PILLAR GARNISH ASSEMBLY RH |
| *7 | NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY | *8 | NO. 1 SPEAKER OPENING COVER ASSEMBLY |
| *9 | NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY | *10 | UPPER INSTRUMENT PANEL SUB-ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

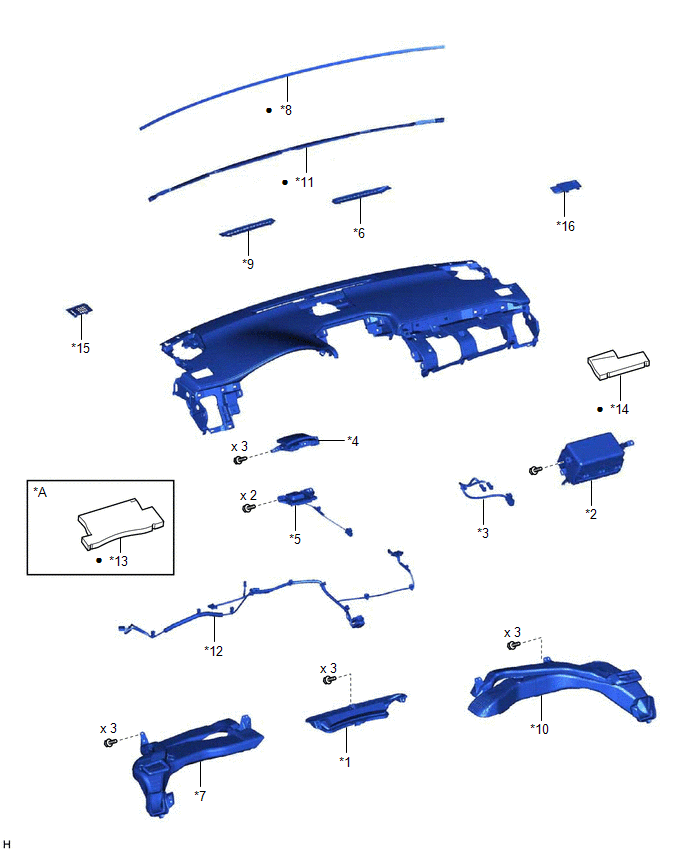

| *A | w/o Headup Display | - | - |
| *1 | DEFROSTER NOZZLE ASSEMBLY | *2 | INSTRUMENT PANEL PASSENGER WITHOUT DOOR AIRBAG ASSEMBLY |
| *3 | INSTRUMENT PANEL WIRE | *4 | METER HOOD SET BRACKET |
| *5 | NAVIGATION ANTENNA ASSEMBLY | *6 | NO. 1 DEFROSTER NOZZLE GARNISH |
| *7 | NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY | *8 | NO. 1 INSTRUMENT PANEL CUSHION |
| *9 | NO. 2 DEFROSTER NOZZLE GARNISH | *10 | NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY |
| *11 | NO. 2 INSTRUMENT PANEL CUSHION | *12 | NO. 2 INSTRUMENT PANEL WIRE |
| *13 | NO. 3 INSTRUMENT PANEL CUSHION | *14 | NO. 4 INSTRUMENT PANEL CUSHION |
| *15 | SIDE DEFROSTER NOZZLE LH | *16 | SIDE DEFROSTER NOZZLE RH |
| • | Non-reusable part | - | - |

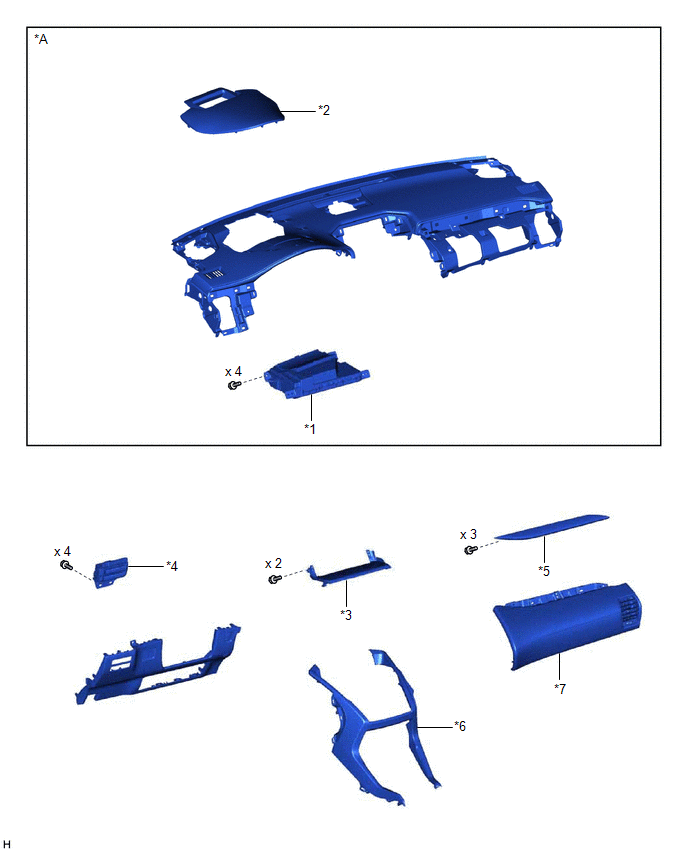

| *A | w/ Headup Display | - | - |
| *1 | COMBINATION METER MIRROR ECU | *2 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY |
| *3 | INSTRUMENT PANEL FINISH PLATE | *4 | LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL |
| *5 | NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH | *6 | CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL |
| *7 | NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | - | - |
