Components [09/2017 - 10/2019]

Fig 1: Lower Instrument Panel Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	DECK FLOOR BOX LH	*2	NO. 3 DECK BOARD SUB-ASSEMBLY
*3	REAR DECK FLOOR BOX	*4	NEGATIVE AUXILIARY BATTERY TERMINAL
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

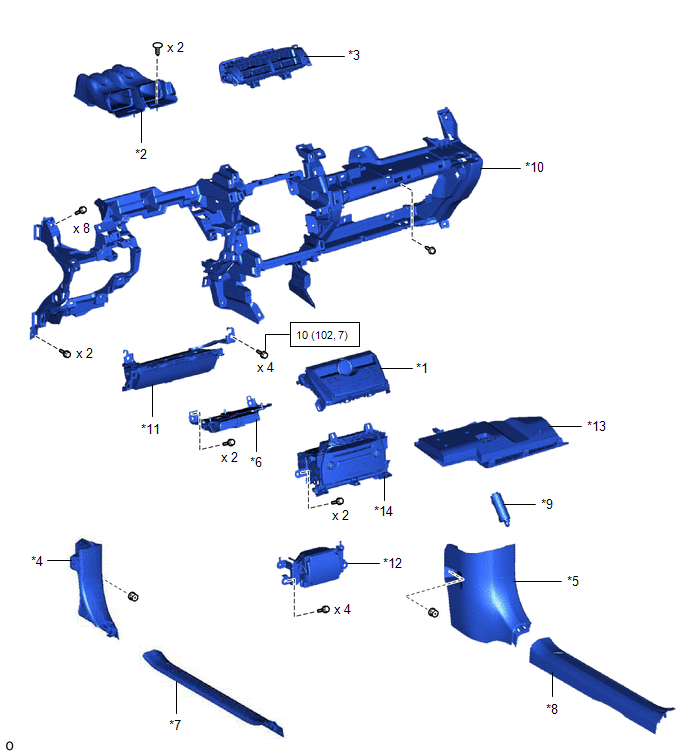

Fig 2: Lower Instrument Panel Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR CONDITIONING CONTROL ASSEMBLY	*2	CENTER HEATER TO REGISTER DUCT
*3	CENTER INSTRUMENT PANEL REGISTER ASSEMBLY	*4	COWL SIDE TRIM BOARD LH
*5	COWL SIDE TRIM BOARD RH	*6	DCM (TELEMATICS TRANSCEIVER) WITH BRACKET
*7	DOOR SCUFF PLATE ASSEMBLY LH	*8	DOOR SCUFF PLATE ASSEMBLY RH
*9	GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY	*10	LOWER INSTRUMENT PANEL SUB-ASSEMBLY
*11	LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY	*12	NO. 1 SPEAKER ASSEMBLY WITH BOX
*13	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	*14	RADIO RECEIVER ASSEMBLY WITH BRACKET
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 3: Lower Instrument Panel Replacement Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GLOVE BOX LIGHT ASSEMBLY

GLOVE COMPARTMENT DOOR CHECK CUSHION

Fig 4: Lower Instrument Panel Replacement Components (4 Of 4)

GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
