Components [09/2015 - 09/2017]

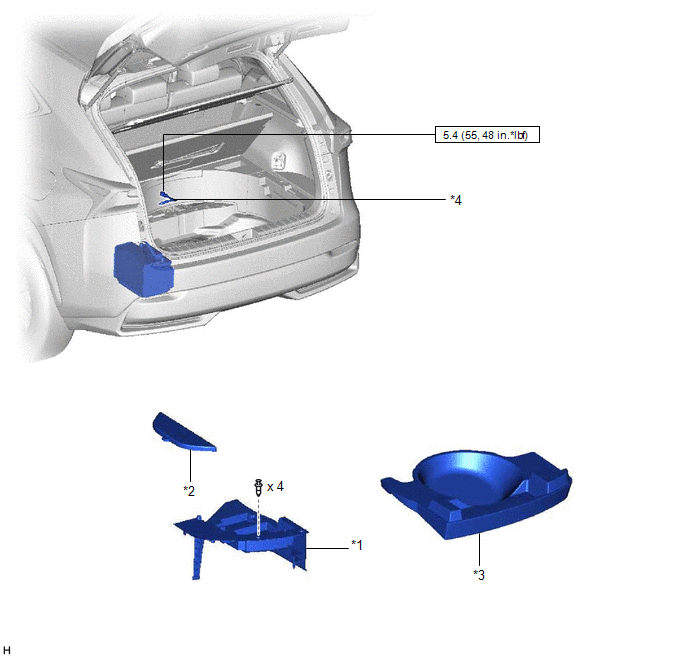

Fig 1: Lower Instrument Panel Replacement Components With Torque Specifications (1 Of 7)
GTY775721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DECK FLOOR BOX LH *2 NO. 3 DECK BOARD SUB-ASSEMBLY
*3 REAR DECK FLOOR BOX *4 NEGATIVE AUXILIARY BATTERY TERMINAL
N*m (kgf*cm, ft.*lbf): Specified torque - -

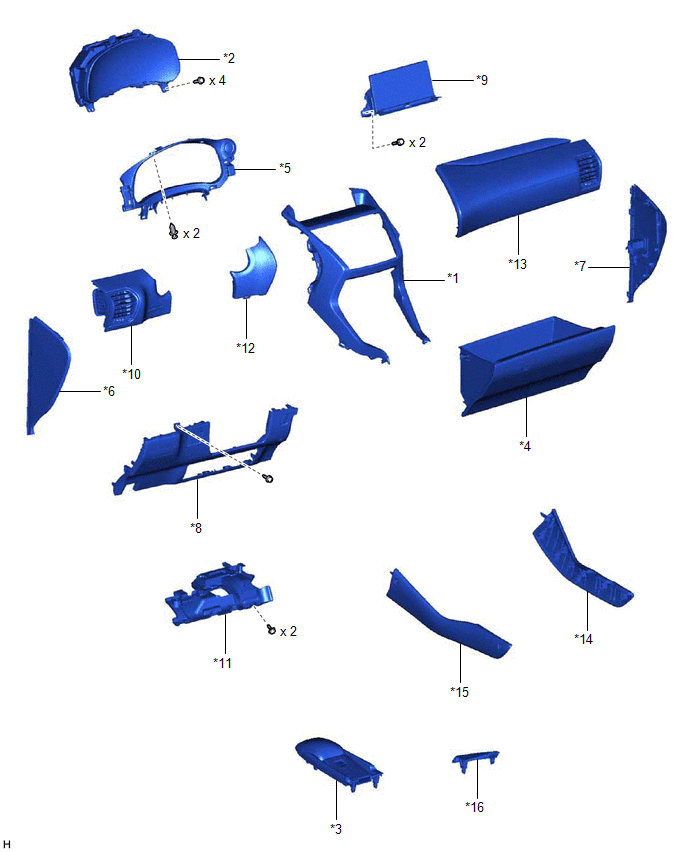

Fig 2: Lower Instrument Panel Replacement Components (2 Of 7)
GTY495426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY *2 COMBINATION METER ASSEMBLY
*3 CONSOLE ARMREST ASSEMBLY *4 GLOVE COMPARTMENT DOOR ASSEMBLY
*5 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY *6 INSTRUMENT SIDE PANEL LH
*7 INSTRUMENT SIDE PANEL RH *8 LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
*9 MULTI-DISPLAY ASSEMBLY *10 NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
*11 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY *12 NO. 1 SWITCH HOLE BASE
*13 NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY *14 UPPER NO. 1 CONSOLE PANEL GARNISH
*15 UPPER NO. 2 CONSOLE PANEL GARNISH *16 UPPER REAR CONSOLE PANEL

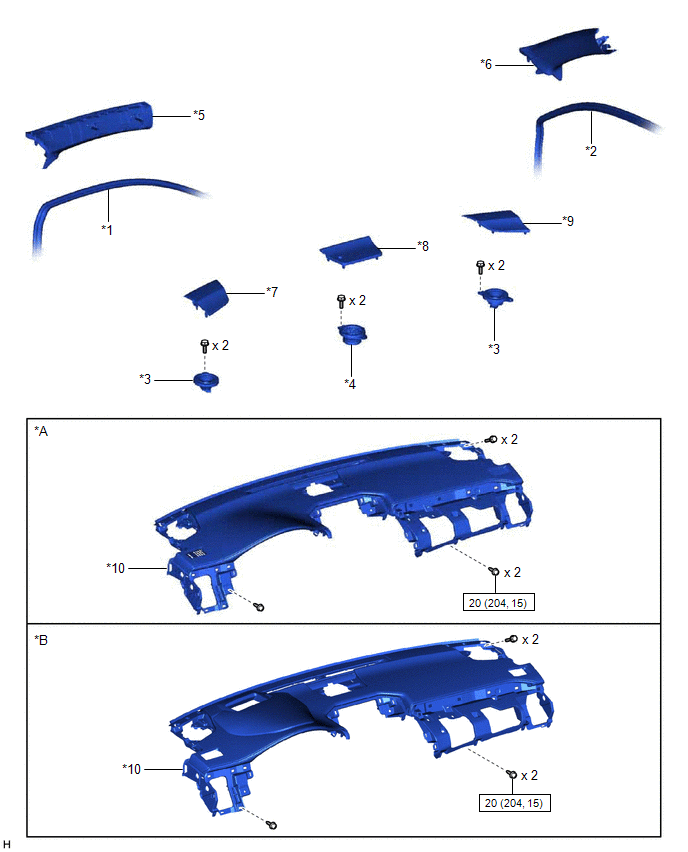

Fig 3: Lower Instrument Panel Replacement Components With Torque Specifications (3 Of 7)
GTY506070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/o Headup Display *B w/ Headup Display
*1 FRONT DOOR OPENING TRIM WEATHERSTRIP LH *2 FRONT DOOR OPENING TRIM WEATHERSTRIP RH
*3 FRONT NO. 2 SPEAKER ASSEMBLY *4 FRONT NO. 3 SPEAKER ASSEMBLY
*5 FRONT PILLAR GARNISH ASSEMBLY LH *6 FRONT PILLAR GARNISH ASSEMBLY RH
*7 NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY *8 NO. 1 SPEAKER OPENING COVER ASSEMBLY
*9 NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY *10 UPPER INSTRUMENT PANEL SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -
Fig 4: Lower Instrument Panel Replacement Components (4 Of 7)
GTY505566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Wireless Charger - -
*1 CONSOLE BOX ASSEMBLY *2 CONSOLE BOX CARPET
*3 CONSOLE BOX POCKET *4 INNER NO. 1 INSTRUMENT PANEL BRACE COVER LH
*5 INNER NO. 1 INSTRUMENT PANEL BRACE COVER RH *6 REAR CONSOLE END PANEL SUB-ASSEMBLY
*7 SHIFT LEVER KNOB SUB-ASSEMBLY *8 UPPER REAR CONSOLE PANEL SUB-ASSEMBLY

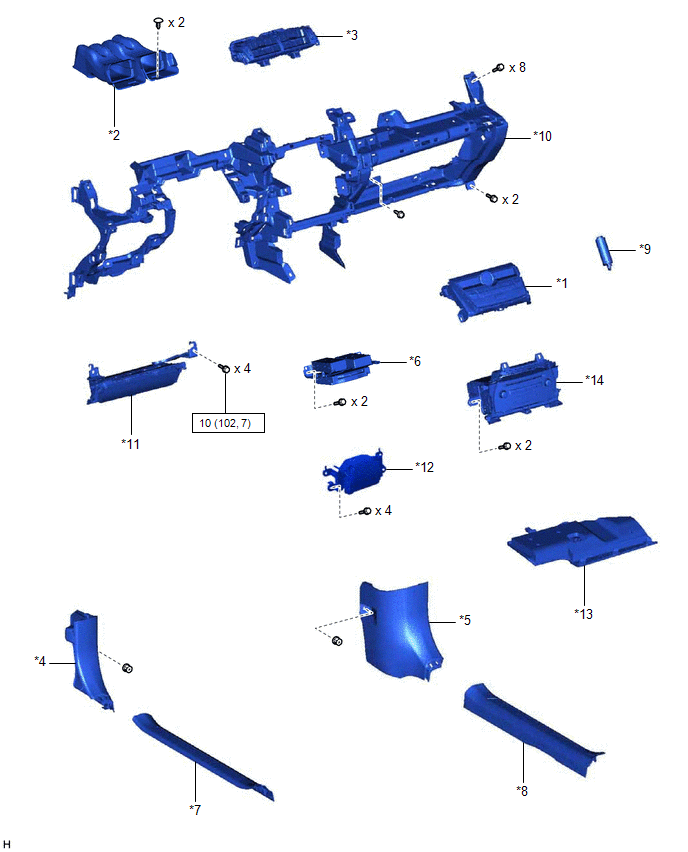

Fig 5: Lower Instrument Panel Replacement Components With Torque Specifications (5 Of 7)
GTY949154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR CONDITIONING CONTROL ASSEMBLY *2 CENTER HEATER TO REGISTER DUCT
*3 CENTER INSTRUMENT PANEL REGISTER ASSEMBLY *4 COWL SIDE TRIM BOARD LH
*5 COWL SIDE TRIM BOARD RH *6 DCM (TELEMATICS TRANSCEIVER)
*7 DOOR SCUFF PLATE ASSEMBLY LH *8 DOOR SCUFF PLATE ASSEMBLY RH
*9 GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY *10 LOWER INSTRUMENT PANEL SUB-ASSEMBLY
*11 LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY *12 NO. 1 SPEAKER ASSEMBLY WITH BOX
*13 NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY *14 RADIO RECEIVER ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -

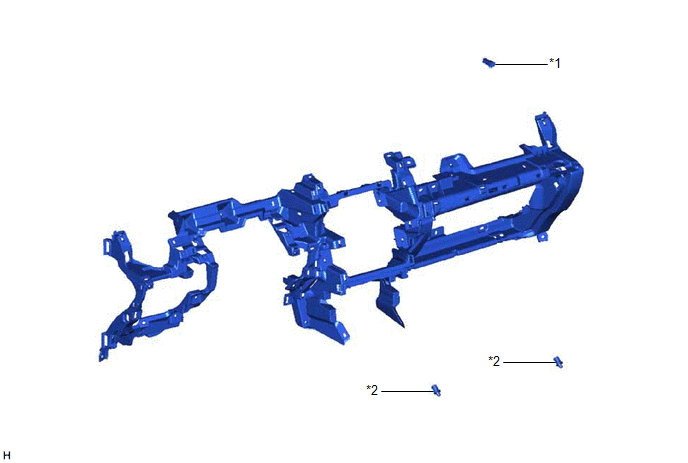

Fig 6: Lower Instrument Panel Replacement Components With Torque Specifications (6 Of 7)
GTY506192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 GLOVE BOX LIGHT ASSEMBLY *2 GLOVE COMPARTMENT DOOR CHECK CUSHION

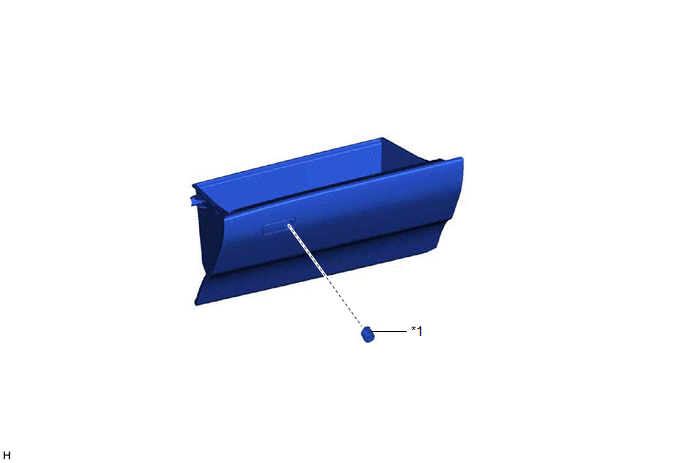

Fig 7: Lower Instrument Panel Replacement Components (7 Of 7)
GTY809205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY - -
