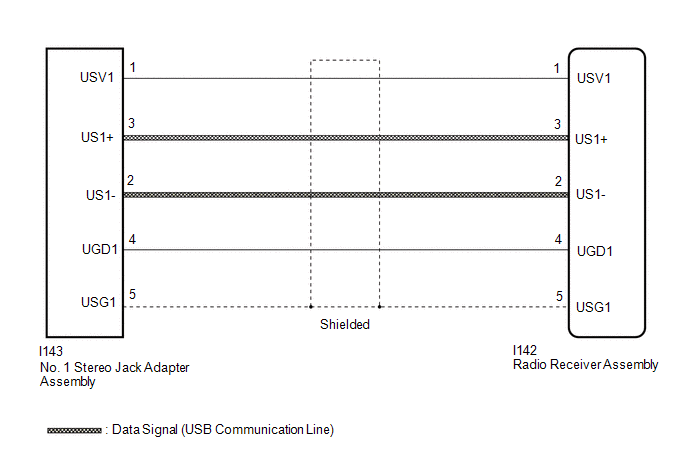

USB Audio System Recognition/Play Error [10/2014 - 09/2017]: Wiring Diagram

GTY513056

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
