DTC B15D3: Stereo Component Amplifier Disconnected [10/2014 - 09/2017]: Procedure

  1. CHECK DTC
    1. If DTC B15C3 is output, perform troubleshooting for DTC B15C3 first.

      Refer to DTC CHECK / CLEAR [10/2014 - 09/2017]

      Body Electrical > Navigation System > Trouble Codes

      OK

      DTC B15C3 is not output.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    GO TO DTC B15C3. Refer to  DTC B15C3: Speaker Output Short [10/2014 - 09/2017]

    Result:

    OK

    See step  2

  2. CHECK OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)
    1. Check that optional components (including associated wiring) which generate radio waves are not installed.

      Result

      Result Proceed to
      Optional components (including associated wiring) are installed. A
      Optional components (including associated wiring) are not installed. B

      HINT:

      • Electrical noise from radio waves generated by optional components or the wiring for those components may affect AVC-LAN communication.
      • This DTC may be stored when an AVC-LAN communication error occurs due to electrical noise.

    Result:

    B

    See step  4

    Result:

    A

    See step  3

  3. CHECK OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)
    1. Remove optional components (including associated wiring).
      NOTE:

      Do not remove optional components or associated wiring without the permission of the customer.

    2. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [10/2014 - 09/2017]

      Body Electrical > Navigation System > Clear DTCs

    3. Recheck for DTCs and check that no DTCs are output.

      Refer to DTC CHECK / CLEAR [10/2014 - 09/2017]

      Body Electrical > Navigation System > Trouble Codes

      OK

      No DTCs are output.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END (COMMUNICATION MALFUNCTION DUE TO NOISE)

    Result:

    NG

    See step  4

  4. CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER ASSEMBLY - BATTERY AND BODY GROUND)
    1. Disconnect the stereo component amplifier assembly connectors.

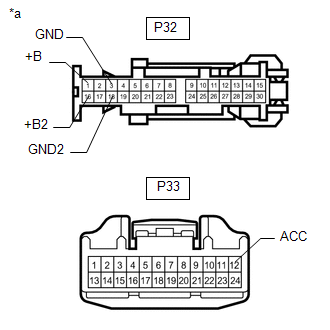

      GTY496454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Stereo Component Amplifier Assembly)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P32-3 (GND) - Body ground Always Below 1 Ω
      P32-18 (GND2) - Body ground Always Below 1 Ω
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      P32-1 (+B) - P32-3 (GND) Power switch off 11 to 14 V
      P32-16 (+B2) - P32-3 (GND) Power switch off 11 to 14 V
      P33-12 (ACC) - P32-3 (GND) Power switch on (ACC) 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. INSPECT RADIO RECEIVER ASSEMBLY
    1. Remove the radio receiver assembly.

      Refer to REMOVAL [10/2014 - 09/2017]

      GTY510025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      7 (TX1+) - 8 (TX1-) Always 60 to 80 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [10/2014 - 09/2017]

    Result:

    OK

    See step  6

  6. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - STEREO COMPONENT AMPLIFIER ASSEMBLY)
    1. Disconnect the I121 radio receiver assembly connector.
    2. Disconnect the P33 stereo component amplifier assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      I121-7 (TX1+) - P33-8 (TX+) Always Below 1 Ω
      I121-8 (TX1-) - P33-7 (TX-) Always Below 1 Ω
      I121-7 (TX1+) or P33-8 (TX+) - Body ground Always 10 kΩ or higher
      I121-8 (TX1-) or P33-7 (TX-) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  7

  7. CHECK STEREO COMPONENT AMPLIFIER ASSEMBLY
    1. Replace the stereo component amplifier assembly.

      Refer to REMOVAL [10/2014 - 09/2017]

    2. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [10/2014 - 09/2017]

      Body Electrical > Navigation System > Clear DTCs

    3. Recheck for DTCs and check that no DTCs are output.

      Refer to DTC CHECK / CLEAR [10/2014 - 09/2017]

      Body Electrical > Navigation System > Trouble Codes

      OK

      No DTCs are output.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END (STEREO COMPONENT AMPLIFIER ASSEMBLY IS DEFECTIVE)

    Result:

    NG

    REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [10/2014 - 09/2017]
