Section 5 (Automatic Transmission (U661E) - Diagnostic Codes (2 Of 2) & Circuit Tests)
>>
Automatic Transaxle System
>>
Shift Paddle Switch Circuit [10/2014 - 09/2017]
>>
Wiring Diagram

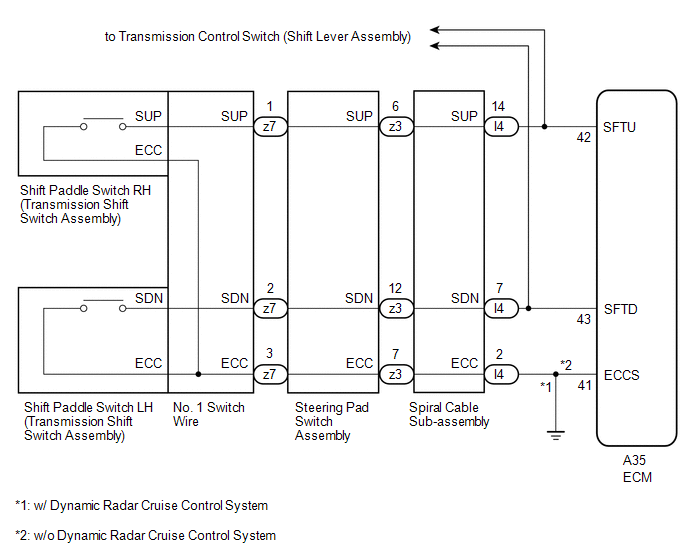

Shift Paddle Switch Circuit [10/2014 - 09/2017]: Wiring Diagram
