Section 5 (Automatic Transmission (U661E) - Diagnostic Codes (2 Of 2) & Circuit Tests)
>>
Automatic Transaxle System
>>
Shift Paddle Switch Circuit [09/2017 - ]
>>
Wiring Diagram

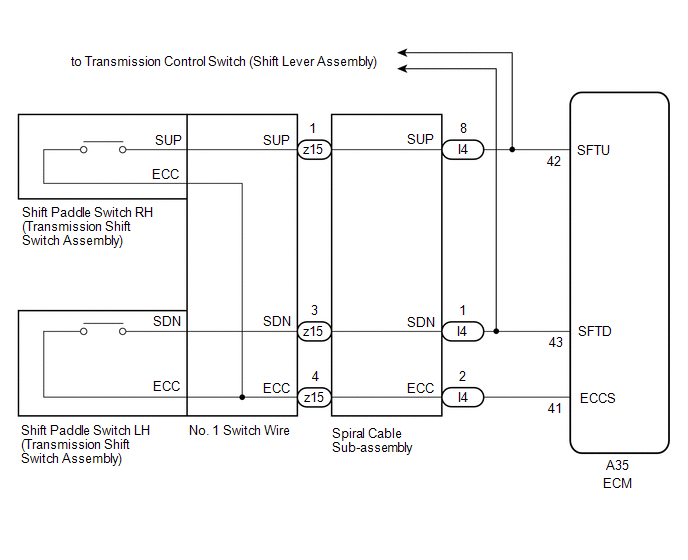

Shift Paddle Switch Circuit [09/2017 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
