DTC P0987-12: Transmission Fluid Pressure Sensor/Switch "E" Circuit Short to Battery [10/2014 - ]: Procedure
- CHECK OTHER DTC OUTPUT (IN ADDITION TO DTC P0987-12)
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Powertrain / Transmission / Trouble Codes.
Powertrain > Transmission > Trouble Codes
- Read the DTCs using the Techstream.
Result
Result Proceed to Only DTC P0987-12 is output A P0987-12 and other DTCs are output B HINT:
If a solenoid is stuck OFF, DTCs for several solenoids including the malfunctioning solenoid will be stored.
Result:
B
GO TO DTC CHART. Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2014 - 09/2015] , or refer to DIAGNOSTIC TROUBLE CODE CHART [09/2015 - 09/2016] , or refer to DIAGNOSTIC TROUBLE CODE CHART [09/2016 - 09/2017] , or refer to DIAGNOSTIC TROUBLE CODE CHART [09/2017 - 05/2018] , or refer to DIAGNOSTIC TROUBLE CODE CHART [05/2018 - 05/2019] , or refer to DIAGNOSTIC TROUBLE CODE CHART [05/2019 - 07/2020] , or refer to DIAGNOSTIC TROUBLE CODE CHART [07/2020 - ]
Result:
A
See step 2
- CHECK HARNESS AND CONNECTOR (NO. 3 ATF PRESSURE SWITCH CIRCUIT)
- Disconnect the ECM connector.
*a Front view of wire harness connector
(to ECM) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition C20-85 (TPS3) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE ECM. Refer to REMOVAL [10/2014 - 05/2019] , or refer to REMOVAL [05/2019 - ]
Result:
NG
See step 3
- Disconnect the ECM connector.
- CHECK HARNESS AND CONNECTOR (WIRING HARNESS CONNECTOR - ECM)
- Disconnect the C21 wiring harness connector.
- Disconnect the C20 ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition C21-10 (TPS3) or C20-85 (TPS3) - Body ground and other terminals Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- INSPECT TRANSMISSION WIRE
- Remove the wiring harness connector.

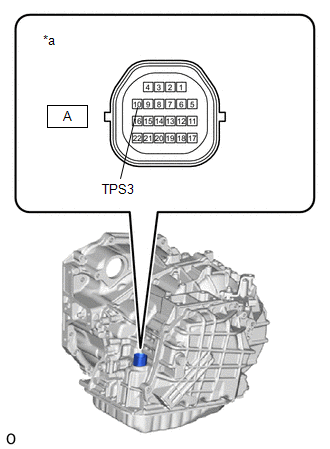

*a Component without harness connected
(Transmission Wire) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A-10 (TPS3) - Body ground and other terminals Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE WIRING HARNESS CONNECTOR. Refer to REMOVAL [10/2014 - 09/2015] , or refer to REMOVAL [09/2015 - 05/2019] , or refer to REMOVAL [05/2019 - ]
Result:
NG
See step 5
- Remove the wiring harness connector.
- INSPECT NO. 3 ATF PRESSURE SWITCH (ATF TEMPERATURE SENSOR ASSEMBLY)
- Disconnect the No. 3 ATF pressure switch connector.

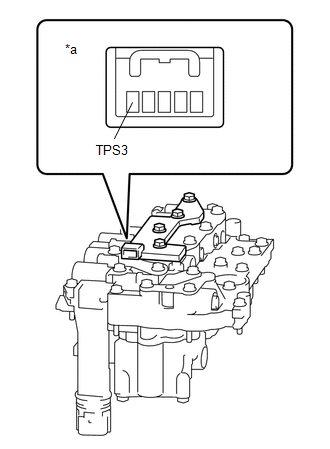

*a Component without harness connected
(ATF Temperature Sensor Assembly)Refer to REMOVAL [10/2014 - ]
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition TPS3 - Body ground and other terminals Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE TRANSMISSION WIRE. Refer to REMOVAL [10/2014 - ]
Result:
NG
REPLACE NO. 3 ATF PRESSURE SWITCH (ATF TEMPERATURE SENSOR ASSEMBLY). Refer to REMOVAL [10/2014 - ]
- Disconnect the No. 3 ATF pressure switch connector.
