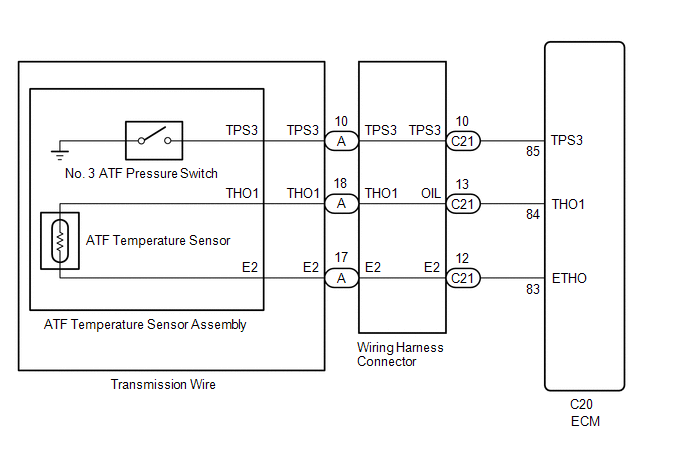

DTC P0710-15: Transmission Fluid Temperature Sensor "A" Circuit Short to Battery or Open [10/2014 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY500058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
