Removal [10/2014 - 05/2019]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [10/2014 - 09/2017] , or refer to PRECAUTION [09/2017 - 05/2019]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2014 - 09/2017] , or refer to INITIALIZATION [09/2017 - 05/2019]

  3. DISCONNECT CABLE FROM POSITIVE BATTERY TERMINAL

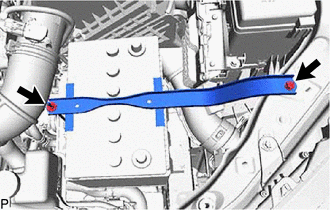

  4. REMOVE BATTERY CLAMP SUB-ASSEMBLY
    1. Remove the bolt and loosen the nut.
      GTY506324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the hook of the battery clamp sub-assembly from the battery carrier assembly, and then remove the battery clamp sub-assembly.
  5. REMOVE BATTERY INSULATOR
  6. REMOVE BATTERY
  7. REMOVE BATTERY TRAY

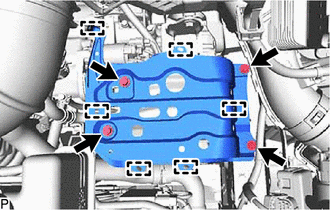

  8. REMOVE BATTERY CARRIER ASSEMBLY
    1. Detach the 6 clamps and disconnect the wire harness.
      GTY506325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and battery carrier assembly.

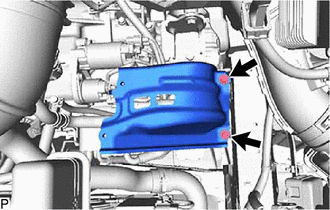

  9. REMOVE BATTERY BRACKET REINFORCEMENT
    1. Remove the 2 bolts and battery bracket reinforcement.
      GTY519435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

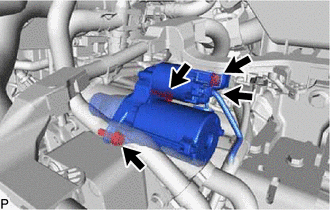

  10. REMOVE STARTER ASSEMBLY
    1. Open the terminal cap.
      GTY518299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and disconnect the starter wire.
    3. Disconnect the starter connector.
    4. Remove the 2 bolts and starter assembly.
